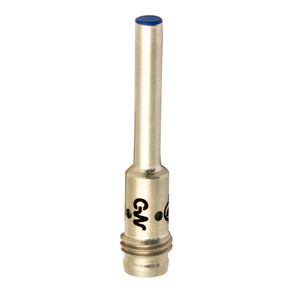

Datasensing AC1/CN-1F Sensors

The Datasensing AC1/CN-1F Sensors are designed with a smooth stainless steel housing and a compact Ø4 mm diameter, making them ideal for precise applications. Featuring a yellow output LED that is 360° visible, these sensors are available in models with a 2 m PVC cable or an M8 connector. With an IP67 protection degree, they are built to withstand harsh environments. The sensors offer a nominal sensing distance of 0.8 mm and an operating distance of 0 to 0.65 mm, with a standard target size of 4x4 mm FE360. They have a correction factor for various materials, including copper, aluminum, brass, and stainless steel, ensuring accurate performance. The thermal drift of Sr is less than 10%, and they boast a repeat accuracy of less than 5% at 24V and 23°C ±5°C. The hysteresis ranges from 1 to 20%, and they function as proximity sensors with an NPN output type and NC output function. With a switching frequency of 5kHz and an operating voltage range of 10 to 30Vdc, these sensors are efficient and reliable. They have a no-load supply current of ? 10mA, a load current of ? 100mA, and a leakage current of ? 10?A. The output voltage drop is ? 1.5V at 100mA, and they can handle a max ripple content of ? 10%. The sensors include short-circuit, reverse polarity, and impulsive overvoltage protection, as well as protection against inductive loads. They are shielded for mounting, with dimensions of Ø4 / L = 38.4mm and a weight of 4g. The housing is made from AISI303 stainless steel, and the active head is constructed from PBT. They operate within a temperature range of -25°C to +70°C and are CE cULus approved, with EMC compatibility per IEC 60947-5-2 standards. The sensors are also designed to withstand shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27 standards.
