Datasensing AC6/CN-3A Sensors
Datasensing
$75.48

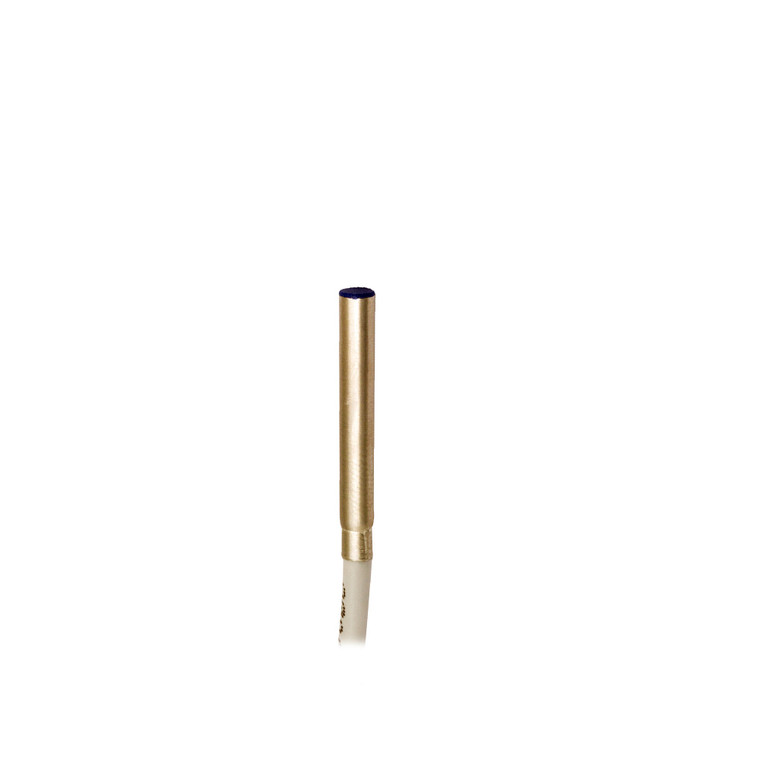

The Datasensing AC6/CN-3A Sensors are designed with a smooth stainless steel housing and a compact Ø4 mm diameter, making them ideal for precise applications. Featuring a nominal sensing distance of 1.5 mm and an operating distance of 0 to 1.21 mm, these sensors are perfect for detecting standard targets of 4.5x4.5mm FE360. The sensors offer a correction factor for various materials, including copper, aluminum, brass, and stainless steel, ensuring accurate performance across different environments.
Equipped with a yellow output LED that is 360° visible, the sensors provide clear status indication. They come with a 2 m PVC cable or M8 connector models, offering flexibility in installation. With an IP67 protection degree, these sensors are built to withstand harsh conditions, including temperatures ranging from -25°C to +70°C.
The AC6/CN-3A Sensors feature a proximity function with an NPN output type and NC output function, supporting a switching frequency of 5kHz. They operate on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable operation.
With a weight of 30g and dimensions of Ø4 / L = 24.9mm, these sensors are easy to integrate into various systems. They are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, as well as vibration and shock standards IEC 60068-2-6 and IEC 60068-2-27. The Datasensing AC6/CN-3A Sensors are a robust and reliable choice for your sensing needs.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 4.5x4.5mm FE360
- Correction Factor:
- copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 short case flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
