Datasensing AC6/CP-1A Sensors
Datasensing
$67.08

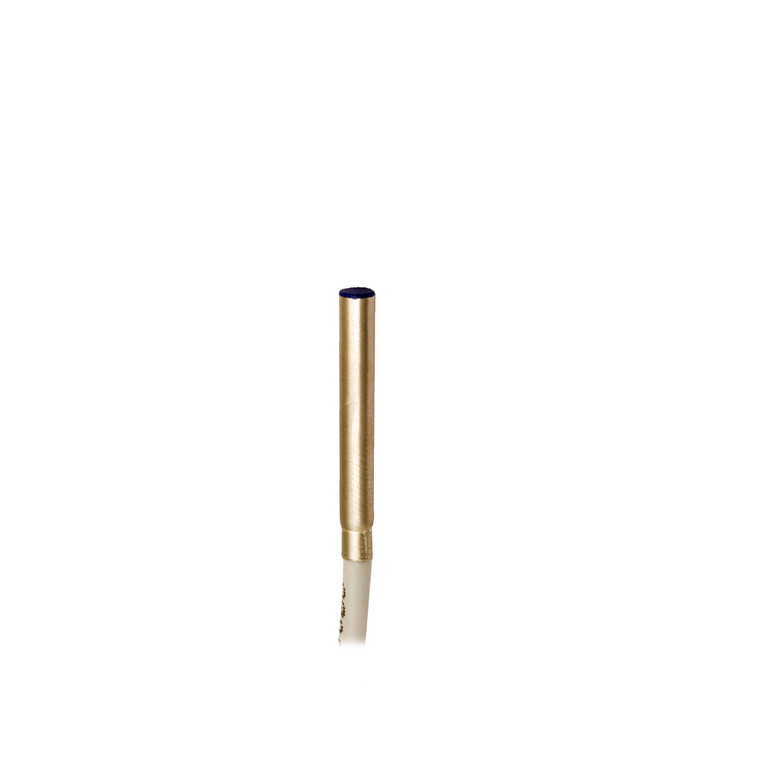

The Datasensing AC6/CP-1A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a smooth stainless steel housing with a compact 4 mm diameter, these sensors are equipped with a yellow output LED that is 360 visible for easy status monitoring. The sensors come with a 2 m PVC cable for flexible installation options and are also available in M8 connector models. With an IP67 protection degree, they are built to withstand harsh environments.
Key specifications include a nominal sensing distance of 0.8 mm and an operating distance of 0 to 0.65 mm, making them ideal for proximity detection applications. The sensors are designed to work with a standard target size of 4x4 mm FE360 and have a correction factor for various materials such as copper, aluminum, brass, and stainless steel. They offer a high switching frequency of 5 kHz and operate within a voltage range of 10 to 30 Vdc.
The AC6/CP-1A Sensors are equipped with essential protective features, including short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. They are shielded for mounting and have a robust construction with AISI303 stainless steel housing and PBT active head material. These sensors are CE and cULus approved, ensuring compliance with international standards. With a mechanical protection rating of IP67, they are resistant to shocks and vibrations, making them suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 0,8mm
- Operanting distance:
- 0 0,65mm
- Standard target:
- 4x4mm FE360
- Correction Factor:
- copper: 0,28 ± 10% / aluminium: 0,21 ± 10% / brass: 0,32 ± 10% / stainless steel: 0,63 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
