Datasensing AD6/AP-3A Sensors
Datasensing
$71.57

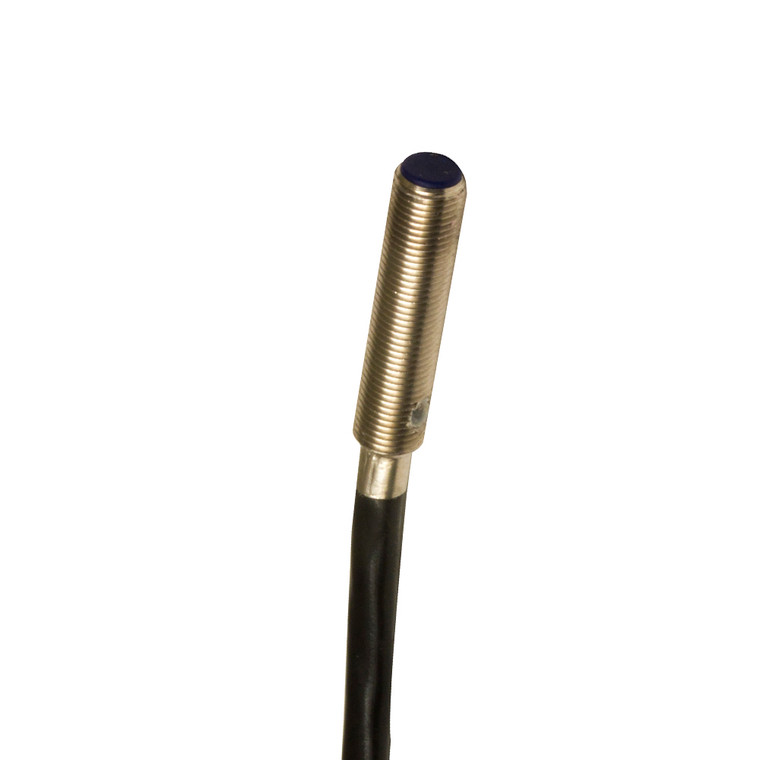

The Datasensing AD6/AP-3A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M5 x 30 mm size with a 2m axial cable, these sensors are perfect for applications requiring minimal space. They operate on a voltage range of 10 to 30 Vdc and support an output current of up to 100 mA. The sensors are equipped with a yellow LED output indicator for easy status monitoring and are fully protected against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
Constructed with a durable AISI303 stainless steel housing, these sensors are built to withstand harsh environments, offering an IP67 degree of protection. The nominal sensing distance is 1.5mm, with an operating distance of 0 to 1.21mm, making them ideal for proximity functions. The sensors are shielded for flush mounting and come with a PNP output type and NO output function, ensuring reliable performance with a switching frequency of 5kHz.
Additional features include a low no-load supply current of ? 10mA, a load current of ? 100mA, and a leakage current of ? 10?A. The sensors also boast a high repeat accuracy of < 5% and a thermal drift of Sr < 10%. They are compatible with various materials, with correction factors for copper, aluminum, brass, and stainless steel. The sensors are supplied with two M5x0.5 nuts for easy installation and are approved by CE and cULus standards, ensuring compliance with international safety and quality regulations.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 5x5mm FE360
- Correction Factor:
- copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M5 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 2Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M5
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M5x0.5
- Mechanical Protection:
- IP67
