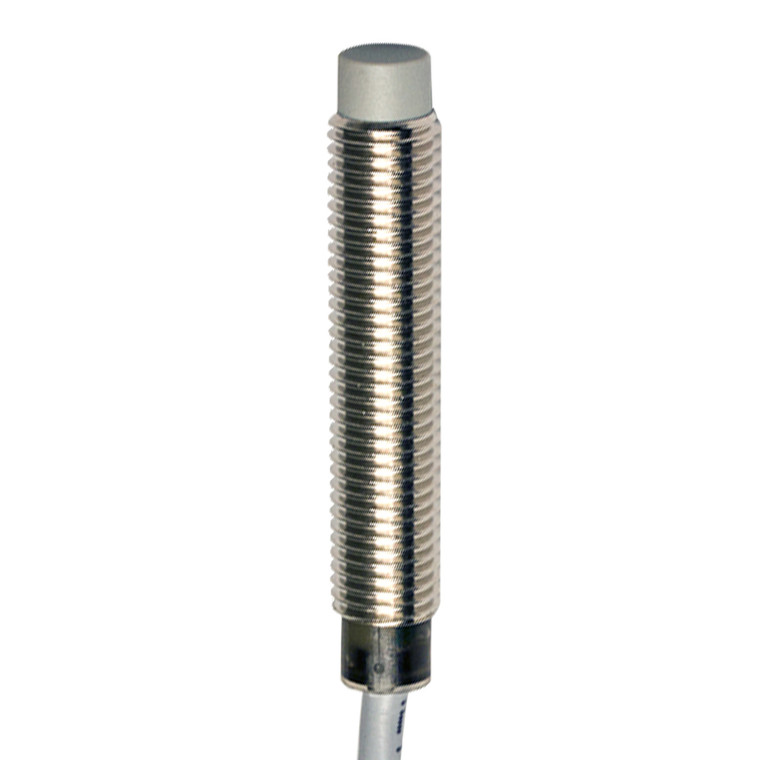

Datasensing AE1/AN-4A86 Sensors
Datasensing
$51.49
The Datasensing AE1/AN-4A86 Inductive Sensor is designed for precision and reliability in industrial applications. Featuring an M8 standard no-flush mount, this sensor offers a nominal sensing distance of 4mm and operates effectively within a range of 0 to 3.24mm. It is equipped with a 5-meter PVC cable for flexible installation and is constructed from durable nickel-plated brass with a PBT active head material. The sensor's NPN output type and NO output function ensure efficient proximity detection, with a high switching frequency of 5kHz.
Engineered for robust performance, it includes short-circuit, reverse polarity, and impulsive overvoltage protection, making it suitable for demanding environments. The sensor operates on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. It features a yellow LED indicator for output state visibility and maintains a low output voltage drop of ? 1.8V at 200mA.
With a mechanical protection rating of IP67, it withstands harsh conditions, including temperatures from -25°C to +70°C, and complies with EMC standards IEC 60947-5-2. The sensor is also approved by CE and UR, ensuring quality and safety. Supplied with two M8x1 nuts, it is easy to install and secure with a tightening torque of 3Nm. Ideal for applications requiring high repeat accuracy and minimal thermal drift, the AE1/AN-4A86 is a reliable choice for precise sensing needs.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,47 / aluminium: 0,52 / brass: 0,58 / stainless steel: 0,79
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M8x1
- Dimensions:
- M8 x 1 / L = 45,5mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
