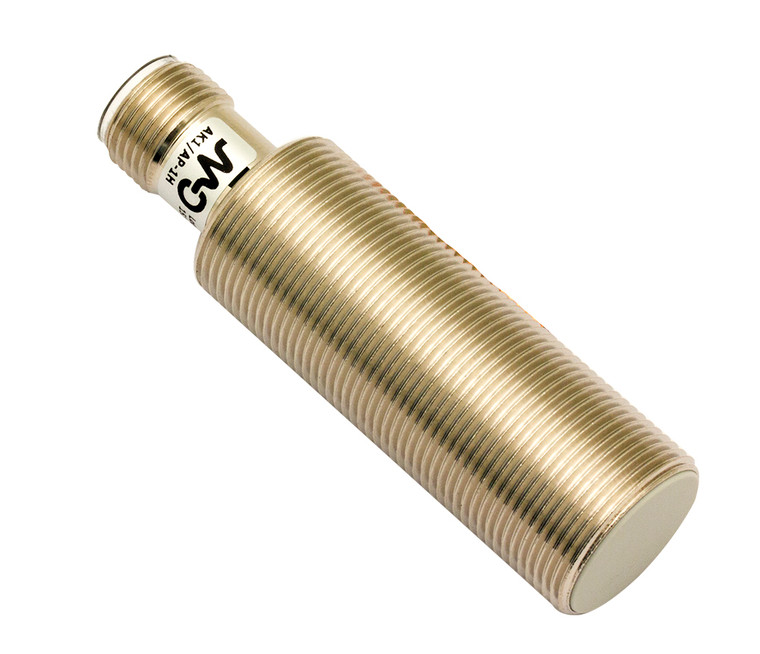

Datasensing AK1/A0-1H Sensors
Datasensing
$55.70
The Datasensing AK1/A0-1H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a nominal sensing distance of 5mm and an operating range of 0 to 4.05mm, these sensors are ideal for detecting standard targets of 18x18mm FE360. With a robust nickel-plated brass housing and a compact M18 x 1 design, they ensure durability and ease of installation. The sensors offer versatile output options, including NPN/PNP with NO function, and support a switching frequency of 300Hz. They operate efficiently within a voltage range of 10 to 30Vdc, with a low no-load supply current of ? 20mA and a load current capacity of 3 to 100mA.
Engineered for challenging environments, the AK1/A0-1H Sensors come with comprehensive protection features such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The sensors are equipped with a yellow LED indicator for output state visibility and are designed to withstand temperatures from -25°C to +70°C. With an IP67 degree of protection, they are resistant to dust and water ingress, making them suitable for a wide range of industrial applications. The sensors are CE and UR approved, ensuring compliance with international standards, and come with supplied accessories including two M18x1 nuts for secure mounting.
- Nominal sensing distance:
- 5mm
- Operanting distance:
- 0 4,05mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,40 / aluminium: 0,48 / brass: 0,50 / stainless steel: 0,86
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- 3 100mA
- Leakage current:
- ? 0,? 8mA
- Output voltage drop:
- ? 2,8V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 55g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
