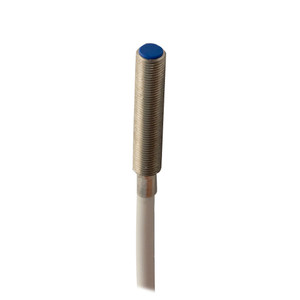

Datasensing AK1/AP-3A86 Sensors

The Datasensing AK1/AP-3A86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M18 shielded design, these sensors operate with a NO/PNP output type and are equipped with a 5-meter axial PVC cable for versatile installation. With a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm, they are ideal for detecting standard targets of 24x24mm FE360. The sensors offer a correction factor for various materials, including copper (0.40), aluminium (0.45), brass (0.50), and stainless steel (0.75). Engineered for stability, they exhibit a thermal drift of Sr of less than 10% and a repeat accuracy of less than 5% at 24V and 23°C ±5°C. The hysteresis ranges from 1 to 20%, ensuring consistent performance. With a switching frequency of 300Hz and an operating voltage between 10 to 30Vdc, these sensors are suitable for a wide range of applications. They feature a no-load supply current of ? 20mA, a load current of ? 400mA, and a leakage current of ? 10?A, with an output voltage drop of ? 1V at 400mA. The sensors are equipped with a yellow LED indicator for output state, and they include essential protections such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. Constructed with a nickel-plated brass housing and an active head made of PBT, they are robust and durable, with a tightening torque of 25Nm. The sensors are CE and UR approved, EMC compatible with IEC 60947-5-2 standards, and resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27. With an IP67 mechanical protection rating, these sensors are built to withstand harsh environments, operating efficiently in temperatures ranging from -25°C to +70°C. They come with two M18x1 nuts for easy mounting, making them a reliable choice for industrial applications requiring precise proximity detection.
