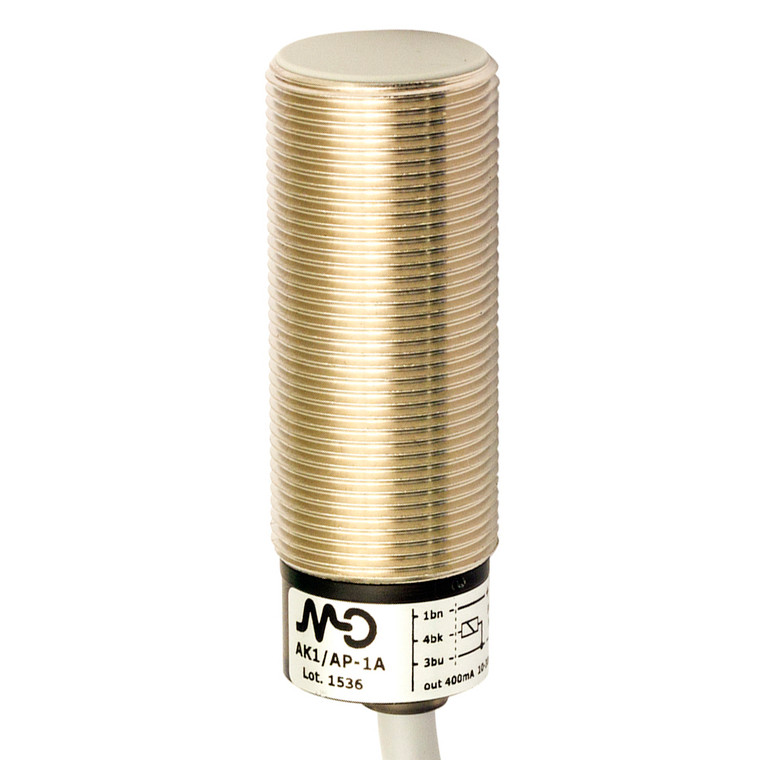

Datasensing AK1/CN-3A Sensors

The Datasensing AK1/CN-3A Sensors are high-performance inductive sensors designed for a variety of applications. With a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm, these sensors are ideal for precise proximity detection. The standard target size is 24x24mm FE360, and they feature a correction factor for different materials: copper (0.40), aluminium (0.45), brass (0.50), and stainless steel (0.75). These sensors boast a thermal drift of Sr of less than 10% and a repeat accuracy of less than 5% at 24V and 23°C ±5°C. The hysteresis ranges from 1 to 20%, ensuring reliable performance. Designed for an operating voltage of 10 to 30Vdc, they have a no-load supply current of ? 20mA and can handle a load current of up to 400mA. The output voltage drop is minimal at ? 1V @400mA, and they feature a switching frequency of 300Hz. The AK1/CN-3A Sensors are equipped with a yellow LED indicator for output state, and they include essential protections such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The sensors are housed in durable nickel-plated brass with an active head made of PBT, and they are designed for shielded mounting. With a robust IP67 degree of protection, these sensors are built to withstand harsh environments, operating temperatures from -25°C to +70°C, and mechanical stresses such as shocks and vibrations. They come with a 2m PVC cable for easy connection and include two M18x1 nuts for secure installation. Certified with CE and UR approvals, the Datasensing AK1/CN-3A Sensors are a reliable choice for industrial applications requiring precise and durable sensing solutions.
