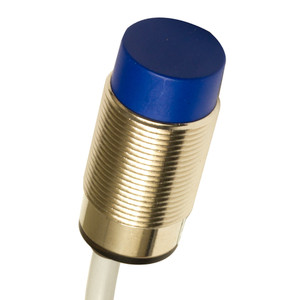

Datasensing AK6/BN-4A Sensors
Datasensing
$58.67
The Datasensing AK6/BN-4A Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a compact M18 short unshielded design, these sensors offer both Normally Open (NO) and Normally Closed (NC) NPN output functions, making them versatile for different operational needs. With a nominal sensing distance of 12mm and an operating range of 0 to 9.7mm, they are ideal for detecting standard targets of 36x36mm FE360. The sensors are equipped with a 2-meter PVC cable for easy installation and connectivity.
Built with robust nickel-plated brass housing and an active head made of PBT, these sensors ensure durability and resistance to harsh environments. They operate efficiently within a temperature range of -25°C to +70°C and are protected against short circuits, reverse polarity, impulsive overvoltage, and inductive loads. The sensors also feature a yellow LED indicator for output state visibility and have a high switching frequency of 2kHz.
With a degree of protection rated at IP67, the AK6/BN-4A sensors are resistant to dust and water ingress, making them suitable for challenging industrial settings. They comply with CE and UR approvals and meet EMC compatibility standards as per IEC 60947-5-2. Additionally, they are designed to withstand shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M18x1 nuts, these sensors are ready for immediate deployment in your automation systems.
- Nominal sensing distance:
- 12mm
- Operanting distance:
- 0 9,7mm
- Standard target:
- 36x36mm FE360
- Correction Factor:
- copper: 0,47 / aluminium: 0,42 / brass: 0,74 / stainless steel: 0,36
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 short case no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 95g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
