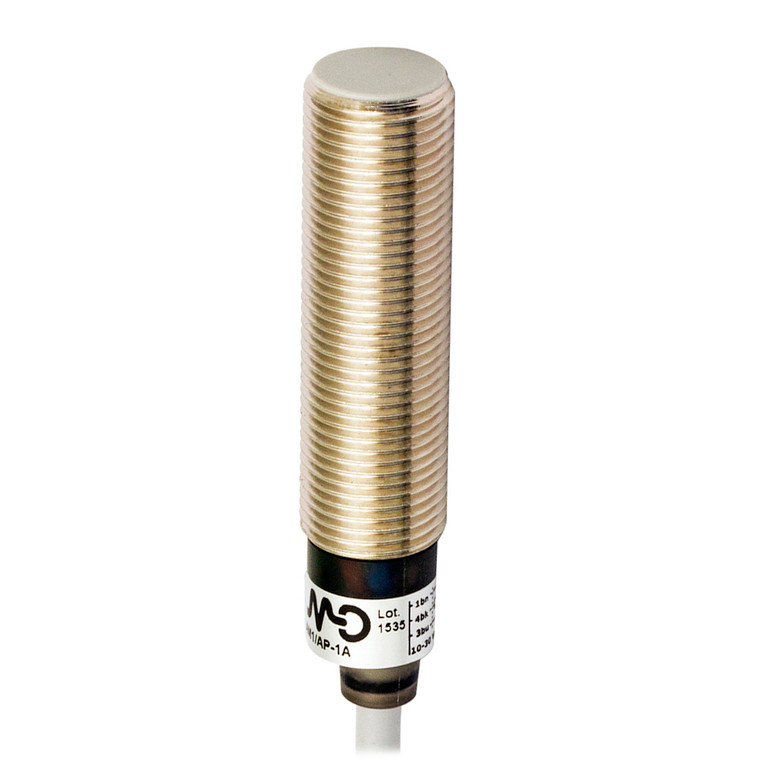

Datasensing AM1/AP-3A8R Sensors

The Datasensing AM1/AP-3A8R Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M12 shielded design, these sensors operate with a NO/PNP output and come with a 10-meter axial cable for flexible installation. With a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, they are ideal for detecting standard targets of 12x12mm FE360. The sensors offer a correction factor for various materials, including copper (0.33), aluminium (0.4), brass (0.5), and stainless steel (1.05). Engineered for stability, they exhibit a thermal drift of Sr of less than 10% and a repeat accuracy of less than 5% at 24V and 23°C ±5°C. The hysteresis ranges from 1 to 20%, ensuring consistent performance. With a switching frequency of 2kHz and an operating voltage between 10 to 30Vdc, these sensors are versatile for various applications. They feature a no-load supply current of ? 10mA, a load current of ? 200mA, and a leakage current of ? 10?A. The output voltage drop is minimal at ? 1.8V @200mA, and the sensors can handle a max ripple content of ? 10%. For user convenience, a yellow LED indicates the output state, and the sensors are ready for use with a time delay of ? 50ms. Built with robust protection features, they include short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The housing is made of durable nickel-plated brass, with an active head material of PBT, and they are designed for shielded mounting. The sensors come with two M12x1 nuts for easy installation and are approved with CE UR certifications, ensuring compliance with IEC 60947-5-2 for EMC compatibility. They withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards, and offer mechanical protection rated at IP67. Suitable for operating temperatures ranging from -25°C to +70°C, these sensors are built to endure challenging environments.
