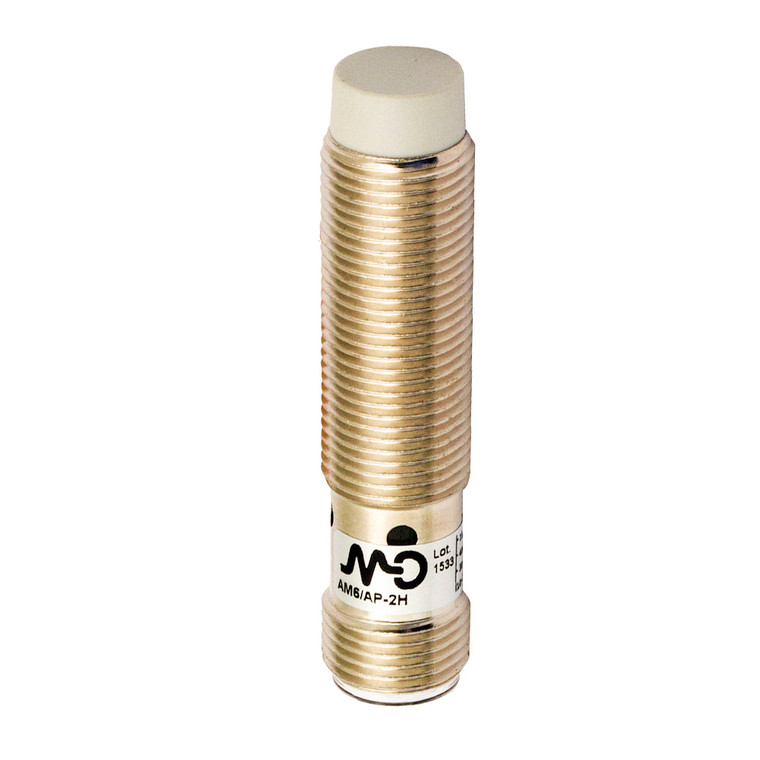

Datasensing AM6/AP-4HAN Sensors

The Datasensing AM6/AP-4HAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M12 unshielded short case, these sensors offer a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring reliable performance with a switching frequency of 2kHz. Constructed with a durable nickel-plated brass housing and an active head made of PBT, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. They are designed to operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors also feature a yellow LED indicator for output state, providing clear visual feedback. Safety and reliability are enhanced with built-in short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. The sensors are compliant with CE and UR approvals, and they meet EMC compatibility standards as per IEC 60947-5-2. Additionally, they are designed to withstand shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27 standards. With a compact design measuring M12 x 1 / L = 52.3mm, these sensors are easy to install using the included M12x1 nuts, and they require a tightening torque of 10Nm. The sensors are suitable for use in environments with temperatures ranging from -25°C to +70°C, and they are approved for use in potentially explosive atmospheres, classified under II 3G Ex nA IIC T6 Gc and II 3D Ex tc IIIB T85°C Dc.
