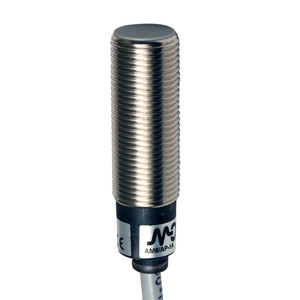

Datasensing AM6/CP-3A Sensors
Datasensing
$45.41
The Datasensing AM6/CP-3A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M12 short case flush mount, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally closed (NC) output function, ensuring efficient proximity detection with a switching frequency of 2kHz.
Constructed with durable nickel-plated brass housing and a PBT active head, the AM6/CP-3A Sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and an IP67 degree of protection. The sensors are shielded for easy mounting and come with a 2m PVC cable for convenient connectivity.
Engineered for safety and reliability, these sensors include short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. The yellow LED indicator provides a clear output state, while the sensors' EMC compatibility with IEC 60947-5-2 ensures minimal interference in electronic environments.
With a weight of 60g and dimensions of M12 x 1 / L = 39.8mm, the AM6/CP-3A Sensors are compact yet robust, featuring a tightening torque of 10Nm. They are CE and UR approved, meeting high standards for quality and performance. Additionally, ATEX models, category 3, are available upon request for specialized applications. Supplied with two M12x1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,33 / aluminium: 0,4 / brass: 0,5 / stainless steel: 1,05
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 60g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
