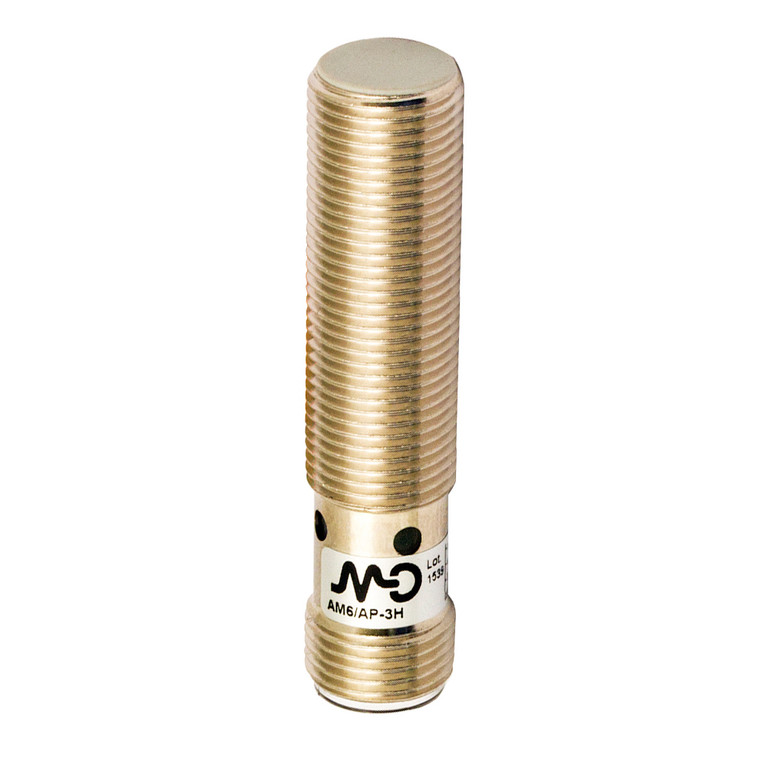

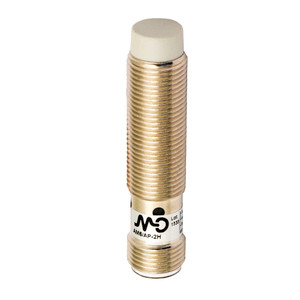

The Datasensing AM6/CP-3H Sensors are high-performance inductive sensors designed for precision and reliability. With a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. They feature a correction factor for various materials, including copper (0.33), aluminium (0.4), brass (0.5), and stainless steel (1.05). The sensors exhibit minimal thermal drift of less than 10% and repeat accuracy of under 5% at 24V and 23°C ±5°C.
The AM6/CP-3H model is a short case flush mount sensor with a PNP output type and normally closed (NC) output function. It operates at a switching frequency of 2kHz and supports an operating voltage range of 10 to 30Vdc. The sensor is designed to handle a no-load supply current of ? 10mA and a load current of ? 200mA, with a leakage current of ? 10?A and an output voltage drop of ? 1.8V at 200mA.
Engineered for durability, the sensor includes short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. It features a yellow LED indicator for output state and a time delay before availability of ? 50ms. The sensor is shielded for mounting, with dimensions of M12 x 1 and a length of 52.3mm, and weighs 20g. Constructed from nickel-plated brass with a PBT active head, it can withstand a tightening torque of 10Nm and operates within a temperature range of -25°C to +70°C.
The AM6/CP-3H is CE and UR approved, with EMC compatibility per IEC 60947-5-2 standards. It is designed to endure shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards, and offers IP67 mechanical protection. The sensor comes with two M12x1 nuts for easy installation.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,33 / aluminium: 0,4 / brass: 0,5 / stainless steel: 1,05
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 20g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
