Datasensing AT1/AN-4H Sensors
Datasensing
$74.20

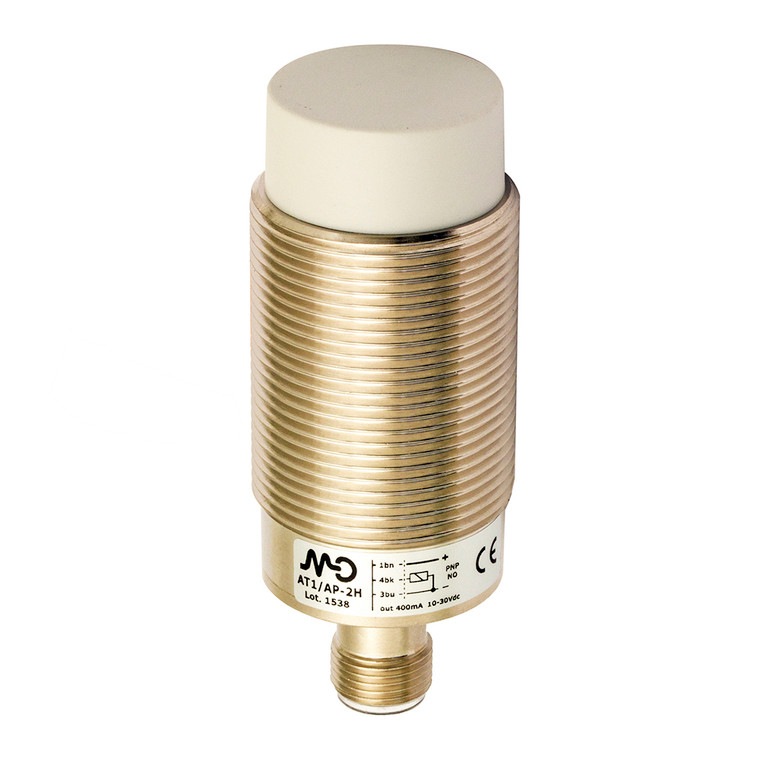

The Datasensing AT1/AN-4H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a robust M30 unshielded design, these sensors offer a nominal sensing distance of 20mm and an operating range of 0 to 16.2mm, making them ideal for detecting standard targets of 60x60mm FE360. With a correction factor for different materials such as copper, aluminum, brass, and stainless steel, these sensors ensure accurate detection across diverse environments.
Equipped with a NO/NPN output type and a switching frequency of 200Hz, the AT1/AN-4H Sensors provide fast and reliable proximity detection. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current of ? 400mA. Designed for durability, they feature complete protection against electrical damages, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection.
The sensors are housed in nickel-plated brass with an active head made of PBT, ensuring a high degree of mechanical protection (IP67) and resistance to shocks and vibrations. The M12 plug connection and yellow LED output state indicator enhance usability and installation convenience. With approvals from CE and UR, and compliance with EMC compatibility standards (IEC 60947-5-2), these sensors are built to withstand harsh industrial conditions, operating efficiently in temperatures ranging from -25°C to +70°C. Supplied with two M30x1.5 nuts, the Datasensing AT1/AN-4H Sensors are a reliable choice for your sensing needs.
- Nominal sensing distance:
- 20mm
- Operanting distance:
- 0 16,2mm
- Standard target:
- 60x60mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 150g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
