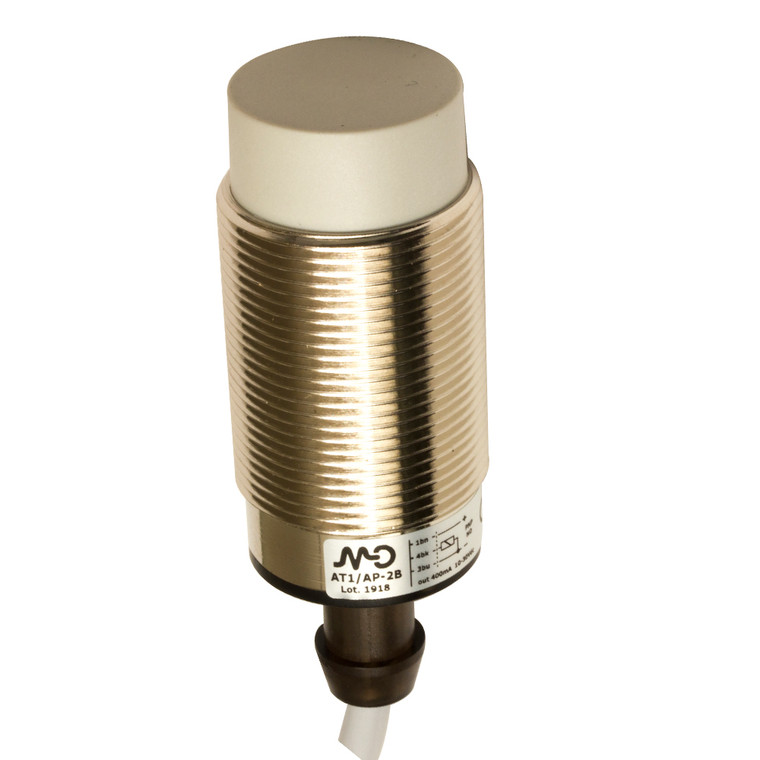

Datasensing AT1/CN-2B Sensors
Datasensing
$59.17
The Datasensing AT1/CN-2B Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M30 unshielded NC/NPN configuration, these sensors offer a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, making them ideal for a variety of industrial applications. The sensors are equipped with a wide range of models, including standard and long-distance options, and are available with cable, M12, and plug cable exits.
With models offering 2, 3, and 4 wire configurations, and ATEX models available upon request, these sensors provide flexibility and adaptability to meet specific needs. The sensors boast complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and longevity in demanding environments.
Constructed with a nickel-plated brass housing and a PBT active head, the sensors are built to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP67. The sensors also feature a yellow LED output state indicator for easy monitoring and a switching frequency of 200Hz for rapid response.
Additional features include a no-load supply current of ? 20mA, a load current of ? 400mA, and a leakage current of ? 10?A, with an output voltage drop of ? 1V at 400mA. The sensors are designed for unshielded mounting and come with supplied accessories, including two M30x1.5 nuts, ensuring easy installation and secure operation.
Ideal for proximity functions, the Datasensing AT1/CN-2B Sensors are CE and UR approved, with EMC compatibility in accordance with IEC 60947-5-2 standards, and are tested for shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 230g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable with tang
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
