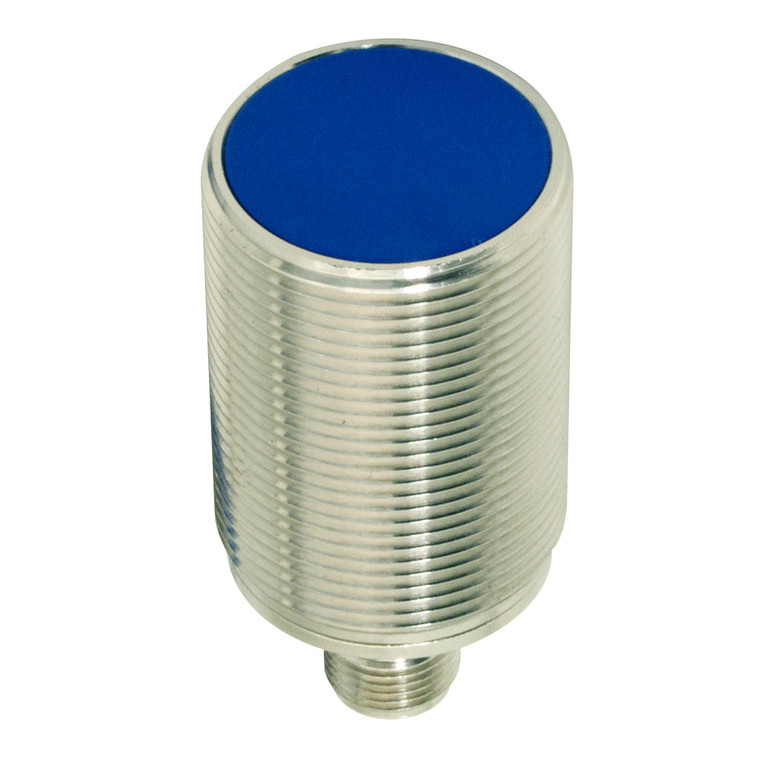

Datasensing AT6/AP-3H Sensors
Datasensing
$74.20
The Datasensing AT6/AP-3H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M30 shielded short housing, these sensors are equipped with a NO/PNP output and an M12 connection for seamless integration into various applications. With a nominal sensing distance of 15mm and an operating range of 0 to 12.1mm, they are ideal for detecting standard targets of 45x45mm FE360. The sensors offer a wide range of models, including standard, long-distance, and ATEX category 3 options available upon request.
Engineered for durability, the AT6/AP-3H Sensors provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are designed to withstand harsh environments with an IP67 degree of protection and are constructed from nickel-plated brass for enhanced durability. The sensors operate efficiently within a temperature range of -25°C to +70°C and feature a yellow LED indicator for output state visibility.
With a switching frequency of 200Hz and a load current capacity of up to 400mA, these sensors ensure high-speed and reliable performance. The M30 x 1.5 dimensions and a weight of 80g make them easy to install, and they come with supplied accessories, including two M30x1.5 nuts. The Datasensing AT6/AP-3H Sensors are CE and cULus approved, ensuring compliance with international standards for safety and performance.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 80g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
