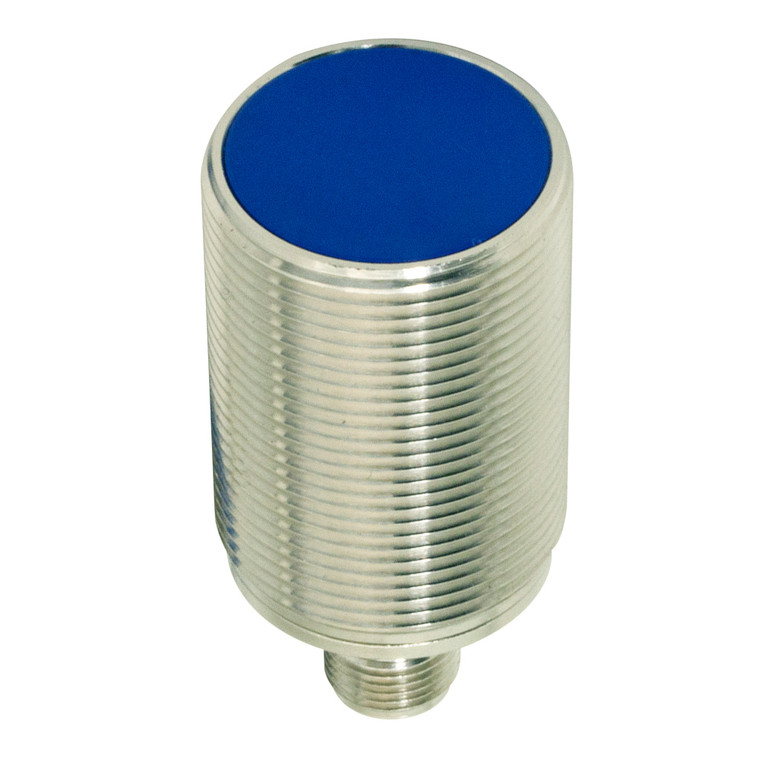

Datasensing AT6/BP-3H Sensors

The Datasensing AT6/BP-3H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M30 shielded short housing, these sensors offer both Normally Open (NO) and Normally Closed (NC) PNP output functions, making them versatile for various applications. With a nominal sensing distance of 15mm and an operating range of 0 to 12.1mm, they are ideal for detecting standard targets of 45x45mm FE360. The sensors are equipped with a robust nickel-plated brass housing and an active head made of PBT, ensuring durability and resistance to harsh environments. These sensors are engineered with complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current of ? 400mA. The output voltage drop is minimal at ? 1V @400mA, and they feature a high switching frequency of 200Hz. The AT6/BP-3H Sensors are designed for easy installation with an M12 plug connection and come with two M30x1.5 nuts for secure mounting. They are CE and cULus approved, ensuring compliance with international standards. With an IP67 degree of protection, these sensors are resistant to dust and water ingress, making them suitable for demanding industrial environments. The sensors also feature a yellow LED indicator for output state visibility and are capable of withstanding shocks and vibrations as per IEC standards. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are a reliable choice for proximity detection needs.
