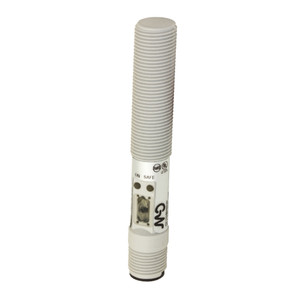

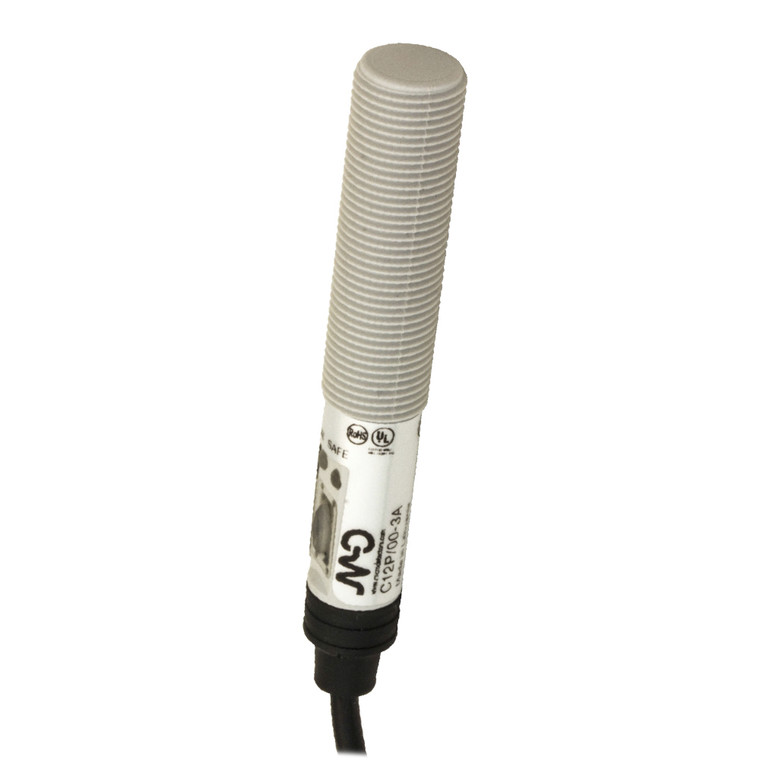

Cap M12 DC Plastico NO/NC
- Nominal sensing distance:
- 0,5 4mm shielded
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- NPN/PNP
- Output Function:
- NO/NC
- Switching frequency:
- ?15Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 300?A
- Output voltage drop:
- ? 2,5V @ IL = 200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected), green LED power supply/stability
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- polarity reversal, overvoltage
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded/Unshielded
- Weight:
- 110g
- Housing Material:
- Polyester
- Connections:
- 2m PVC cable
- Active Head Material:
- Polyester
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x M12 nuts
- Mechanical Protection:
- IP67
