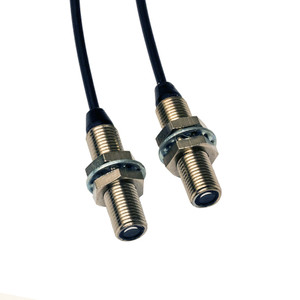

Datasensing CF/CC1-20 Sensors
Datasensing
$166.51
The Datasensing CF/CC1-20 Sensors are designed for precision and versatility, featuring a cutable optical fibre scanner with a 2-meter spiral tube. These sensors offer a wide range of models, including ultra-slim options for detecting small objects and long-distance capabilities. The flexible fibre heads, equipped with protective sleeves, allow for easy customization and adaptability to various applications. The cutting fibre units provide additional flexibility, ensuring the perfect fit for your needs.
With a robust IP67 protection degree, these sensors are built to withstand harsh environments, making them suitable for both indoor and outdoor use. They are compatible with the SSF, FS1, FX3, and FX4 series, offering varying detection distances from 15 mm to 100 mm, depending on the series. The sensors operate on a diffuse reflection principle, utilizing plastic optical fibres with an axial optic position.
Constructed with a durable nickel-plated brass head and a PE plastic optical fibre material, these sensors are designed to perform in extreme temperatures ranging from -40°C to +70°C. The M6 head shape and 1 mm spiral optical fibre core ensure precise and reliable performance. Whether you need to detect small objects or require long-distance scanning, the Datasensing CF/CC1-20 Sensors provide the flexibility and reliability you need for your applications.
- Distance with SSF:
- 15 mm
- Distance with FS1:
- 15 mm
- Distance with FX3:
- 70 mm
- Distance with FX4:
- 100 mm
- Distance with F1R:
- 50 mm
- Function Principle:
- Diffuse reflection
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm spiralata
- Head shape:
- M6
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
