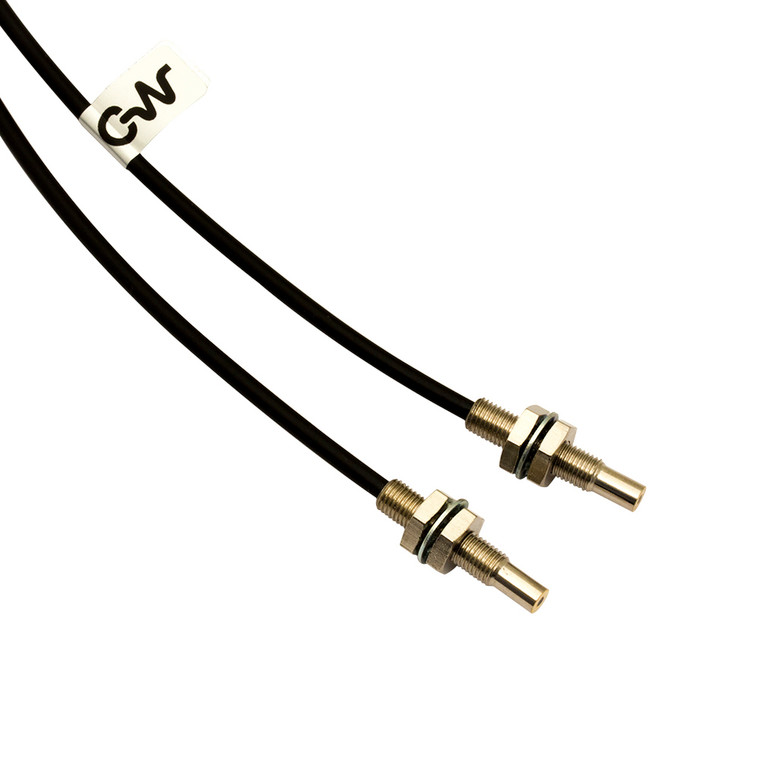

Datasensing CF/RC6-20 Sensors
Datasensing
$254.48
The Datasensing CF/RC6-20 Sensors are designed for precision and versatility, featuring cutable optical fibre emitters and receivers with a 2-meter spiral design. These sensors offer a wide range of models, including ultra-slim options for detecting small objects and long-distance capabilities. The spiral tube design enhances handling flexibility, while the variety of flexible fibre heads with sleeves and cutting fibre units provide adaptability for diverse applications. With an IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with SSF, FS1, FX3, and FX4 series, offering varying detection distances from 100 mm to 500 mm. The sensors operate efficiently in temperatures ranging from -40°C to +70°C, ensuring reliable performance in extreme conditions. Constructed with a 1 mm spiral optical fibre core and nickel-plated brass head, these sensors are both durable and efficient. CE approved, they are ideal for applications requiring precise optical fibre technology.
- Distance with SSF:
- 100 mm
- Distance with FS1:
- 100 mm
- Distance with FX3:
- 500 mm
- Distance with FX4:
- 500 mm
- Distance with F1R:
- 350 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm spiralata
- Head shape:
- M4
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
