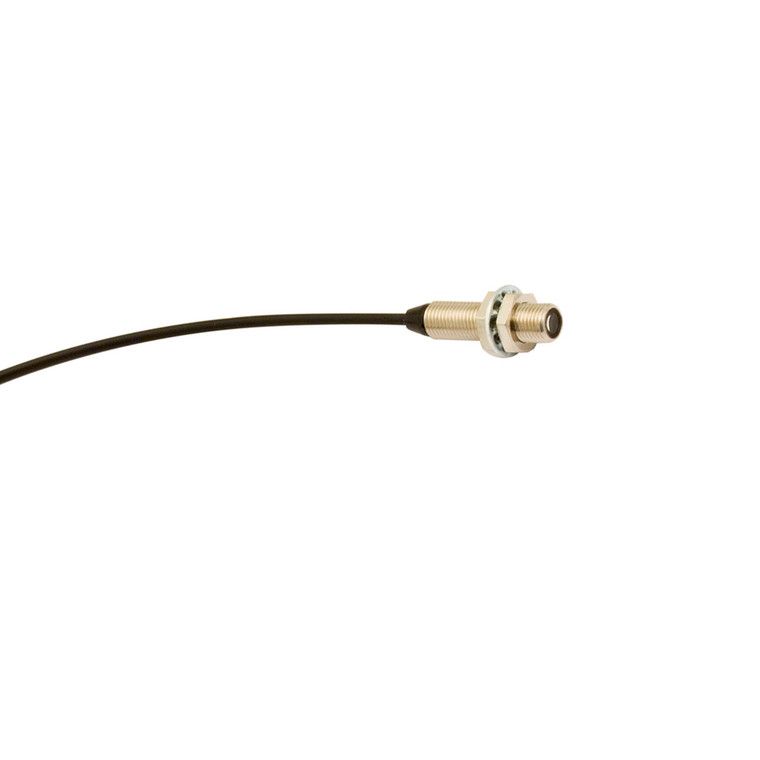

Datasensing CF/RCA-20 Sensors
Datasensing
$297.65
The Datasensing CF/RCA-20 Sensors are designed for precision and versatility, featuring optical fibre that is cutable and equipped with an emitter/receiver system. With a 2-meter spiral design, these sensors are ideal for a variety of applications, offering a wide range of models including ultra-slim options for detecting small objects and long-distance capabilities. The spiral tube design enhances handling flexibility, while the robust construction ensures durability with an IP67 protection degree. Compatible with SSF, FS1, FX3, and FX4 series, these sensors provide reliable performance across different distances, from 1,000 mm to 8,000 mm. The plastic optical fibres are positioned axially and operate efficiently in temperatures ranging from -40°C to +70°C. The head, made from nickel-plated brass, is shaped in an M7 design with lenses, ensuring precise detection. Additional accessories, such as the ST 28, can be ordered separately to enhance functionality. Ideal for environments requiring high mechanical protection, the CF/RCA-20 Sensors are CE approved, making them a reliable choice for industrial applications.
- Distance with SSF:
- 1.000 mm
- Distance with FS1:
- 1.000 mm
- Distance with FX3:
- 6.000 mm
- Distance with FX4:
- 8.000 mm
- Distance with F1R:
- 2.200 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm spiralata
- Head shape:
- M 7 with lenti
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- ST 28
- Mechanical Protection:
- IP67
