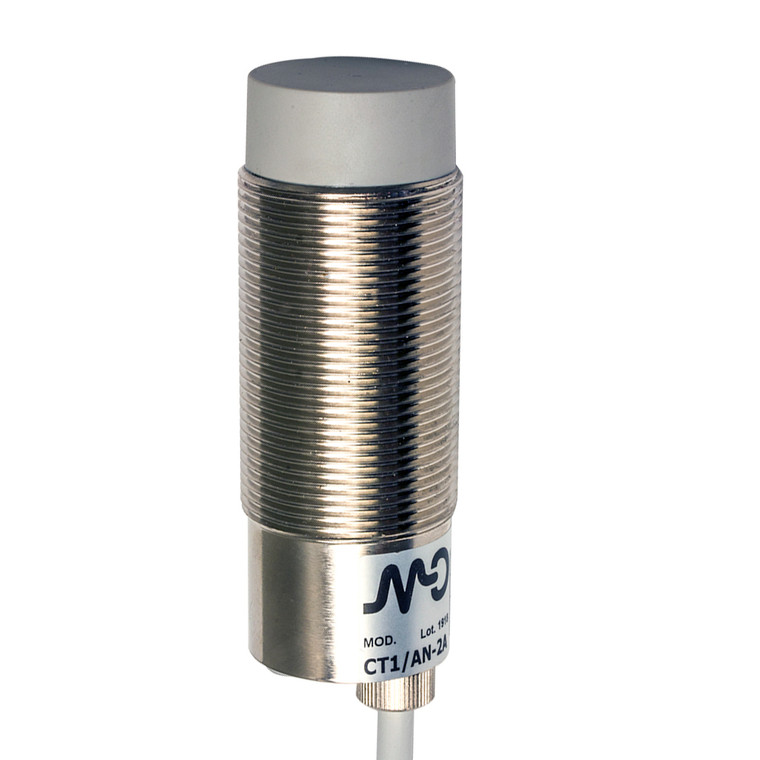

Datasensing CT1/AP-2A Sensors
Datasensing
$176.34
The Datasensing CT1/AP-2A Sensors are designed for precision and reliability in various industrial applications. These capacitive sensors feature a nominal sensing distance of 2 to 20mm, with a thermal drift of less than 20% and a repeat accuracy of 10%. The sensitivity can be easily adjusted using the built-in trimmer, ensuring optimal performance in diverse environments.
Housed in durable nickel-plated brass, these sensors boast an IP65 protection degree, safeguarding against dust and water ingress. The axial cable exit or optional M12 plug cable exit provides flexibility in installation, while the 2m PVC cable ensures a secure connection. With a switching frequency of 100Hz and an operating voltage range of 10 to 30Vdc, these sensors are equipped to handle demanding tasks.
The CT1/AP-2A Sensors offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The green LED indicator signals power status, while the red LED alerts when an object is detected. With a load current capacity of up to 200mA and a no-load supply current of ? 8mA, these sensors are efficient and reliable.
Designed to withstand harsh conditions, they operate within a temperature range of -25°C to +70°C and are compliant with EMC standards IEC 60947-5-2. The sensors come with supplied accessories, including a screwdriver and two M30 nuts, for easy installation. Ideal for applications requiring precise detection and robust performance, the Datasensing CT1/AP-2A Sensors are a dependable choice for your sensing needs.
- Nominal sensing distance:
- 2 20mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 100Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 8mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10mA
- Output voltage drop:
- 0,75/1,8V max @ IL=10/200 mA
- Max ripple content:
- ?10%
- LED indicators:
- Green LED power, red LED (object detected)
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 260g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Operating temperature:
- -25°C +70°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP65
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Operating Temperature:
- -25°C +70°C (without freeze)
- Mechanical Protection:
- IP65
