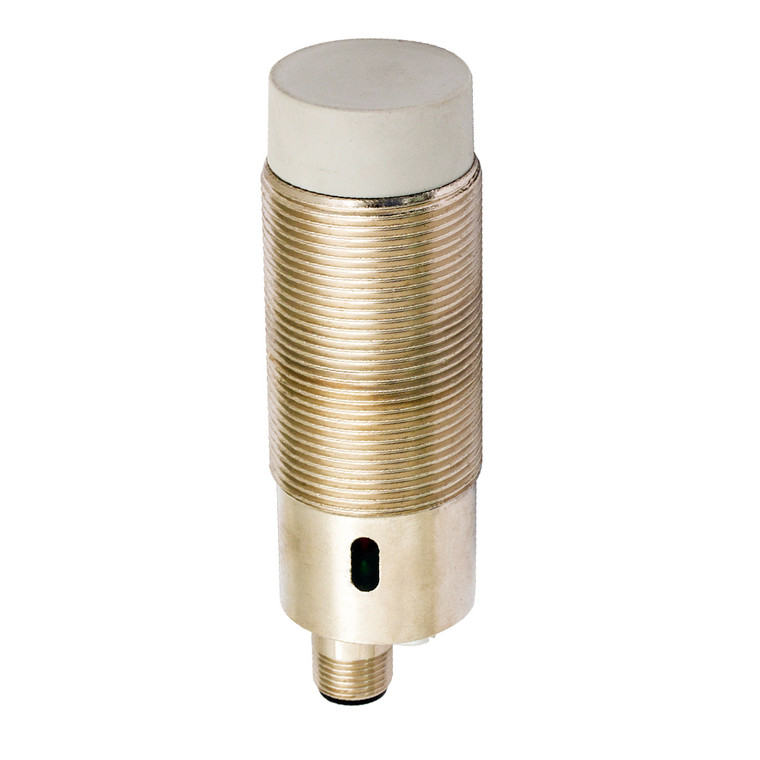

Datasensing CT1/AP-2H Sensors
Datasensing
$187.78
The Datasensing CT1/AP-2H Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring a robust nickel-plated brass housing, these sensors offer complete protection against electrical damages and are rated with an IP65 protection degree, ensuring durability in challenging environments. The M30 unshielded design allows for easy installation, with options for axial cable exit or M12 plug cable exit.
With a nominal sensing distance ranging from 2 to 20mm, the CT1/AP-2H Sensors provide excellent sensitivity adjustment via a trimmer, allowing for precise detection. The sensors boast a thermal drift of Sr less than 20% and a repeat accuracy of 10%, ensuring consistent performance. The PNP output type with a normally open (NO) function and a switching frequency of 100Hz makes these sensors versatile for various applications.
Operating within a voltage range of 10 to 30Vdc, the sensors have a low no-load supply current of ? 8mA and can handle a load current of up to 200mA. The sensors are equipped with green and red LED indicators for power and object detection, respectively, providing clear visual feedback. Safety features include short-circuit protection with auto-reset, reverse polarity protection, and impulsive overvoltage protection.
The CT1/AP-2H Sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and compliance with EMC compatibility standards IEC 60947-5-2. Supplied with a screwdriver and two M30 nuts, these sensors are ready for immediate deployment in your industrial setup.
- Nominal sensing distance:
- 2 20mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 100Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 8mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10mA
- Output voltage drop:
- 0,75/1,8V max @ IL=10/200 mA
- Max ripple content:
- ?10%
- LED indicators:
- Green LED power, red LED (object detected)
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 185g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Operating temperature:
- -25°C +70°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP65
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Operating Temperature:
- -25°C +70°C (without freeze)
- Mechanical Protection:
- IP65
