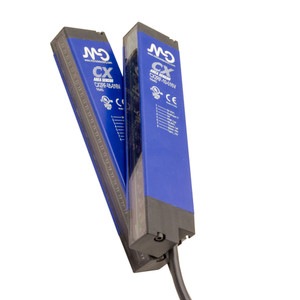

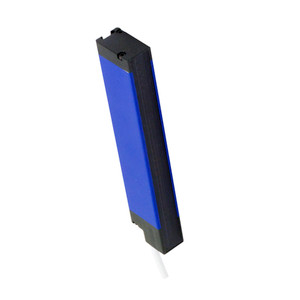

Datasensing CX2E0RA/20-096VTB Sensors

The Datasensing CX2E0RA/20-096VTB Sensors are designed for precision and reliability in industrial applications. Featuring a nominal sensing distance of 0.3 to 6 meters, these area sensors utilize a one-cable synchronization system with a beam spacing of 20mm and a controlled height of 960mm. The sensors are capable of detecting objects with a minimum diameter of 20mm using 49 parallel beams, including a top beam for enhanced coverage. Equipped with a teach-in by wire sensitivity adjustment, the sensors operate on an emitter/receiver principle, providing output types of 0 to 10V and 4 to 20mA with a switching frequency of 23.5Hz. They function within an operating voltage range of 16.8 to 30Vdc, ensuring efficient performance with a no-load supply current of ?330mA and a load current of <100mA. The sensors are designed with robust short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, making them highly durable. Constructed with an aluminum housing and PMMA active head material, the sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. They are compatible with IEC 60947-5-2 standards for EMC, shocks, and vibrations, and are approved by CE and cULus. The sensors come with LED indicators in blue, red, and yellow for the emitter, and green, red, and yellow for the receiver, providing clear status visibility. With a storage temperature range of -25°C to +60°C and an operating temperature range of -10°C to +55°C, these sensors are versatile for various industrial settings. The package includes an ST151 fixing kit for easy installation, and the sensors are equipped with M12 4-pin and 8-pin connections with PVC cables for seamless integration. Weighing 2700g and measuring 969x36x20mm, the Datasensing CX2E0RA/20-096VTB Sensors are a reliable choice for precise area detection needs.
