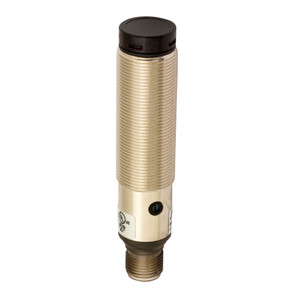

Datasensing FAI4/BP-0A Sensors
Datasensing
$81.54
The Datasensing FAI4/BP-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 200mm, making them ideal for short-distance applications. The sensors are equipped with a PNP NO+NC output type, providing versatile switching options. With a robust IP67 protection rating, they are suitable for use in harsh environments, offering total protection against electric damages. The sensors are housed in durable plastic with a 2m PVC cable for easy installation. They operate efficiently within a voltage range of 10
30VDC and have a low no-load supply current of ? 30mA. The sensitivity can be easily adjusted using a trimmer, ensuring optimal performance. Additional features include short-circuit and reverse polarity protection, a fast response time of 2ms, and LED indicators for output status. These sensors are CE and cULus listed, ensuring compliance with international standards. Ideal for applications requiring high accuracy and reliability, the Datasensing FAI4/BP-0A Sensors are a dependable choice for industrial automation needs.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
