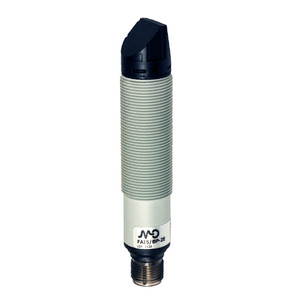

Datasensing FAI6/BP-2A Sensors
Datasensing
$88.17
The Datasensing FAI6/BP-2A Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 400mm, making them ideal for medium-distance applications. The sensors are equipped with a PNP NO+NC output type, providing versatile switching options. Constructed with a robust plastic housing, they ensure durability and reliability in various environments. The sensors operate within a voltage range of 10
30VDC and are protected against short circuits, overvoltage, and reverse polarity, ensuring safe and stable performance. With an IP67 protection degree, they are resistant to dust and water ingress, making them suitable for harsh industrial conditions. The sensors come with a 2m PVC cable for easy installation and connectivity. Additionally, they feature LED indicators for output status and are approved by CE and cULus, ensuring compliance with international standards. Ideal for applications requiring high repeat accuracy and minimal thermal drift, the Datasensing FAI6/BP-2A Sensors are a reliable choice for efficient and accurate object detection.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT/ PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
