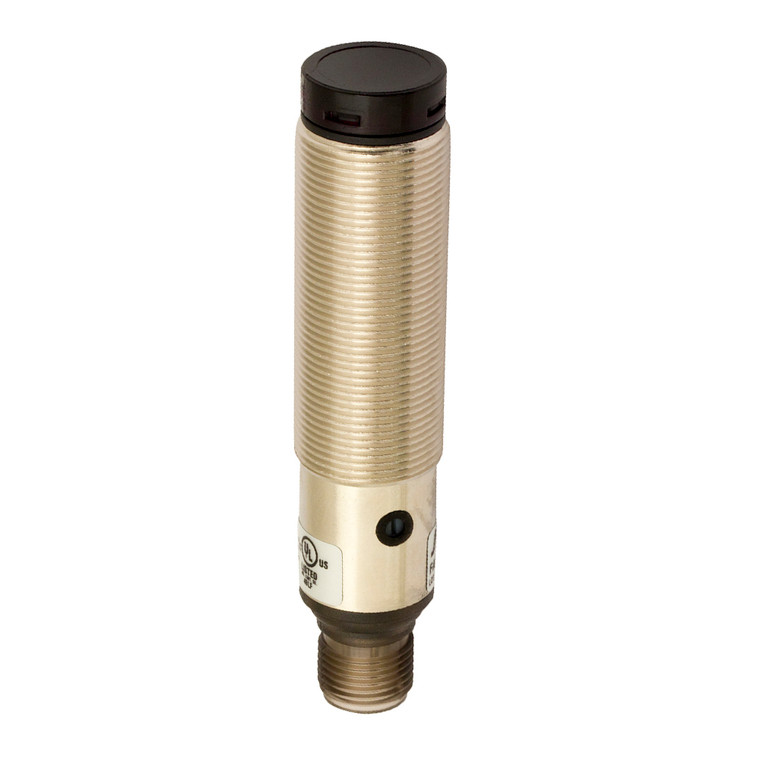

Datasensing FAI8/BN-1E Sensors
Datasensing
$99.47
The Datasensing FAI8/BN-1E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 1 meter, making them ideal for long-distance applications. The robust design includes a nickel-plated brass housing with a PC plug, ensuring durability and protection against harsh environments with an IP67 rating.
Equipped with NPN NO+NC output types, these sensors provide flexibility in various applications. The sensitivity can be easily adjusted using a trimmer, allowing for optimal performance even with challenging targets like white Kodak 90% 400 x 400mm. The sensors operate efficiently within a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 30mA and a load current capacity of ?100mA.
The FAI8/BN-1E Sensors are designed to withstand extreme conditions, with an operating temperature range of -25°C to +70°C and protection against short circuits, overvoltage, and reverse polarity. The sensors are also equipped with LED indicators for easy status monitoring and have a fast response time of 2ms, ensuring quick and accurate detection.
With approvals from CE and cULus, these sensors meet high safety and quality standards. They are also EMC compatible with EN 60947-5-2, ensuring minimal interference with other electronic devices. The package includes M18 x 1 nuts and a screwdriver for easy installation, making the Datasensing FAI8/BN-1E Sensors a reliable choice for industrial automation and control applications.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
