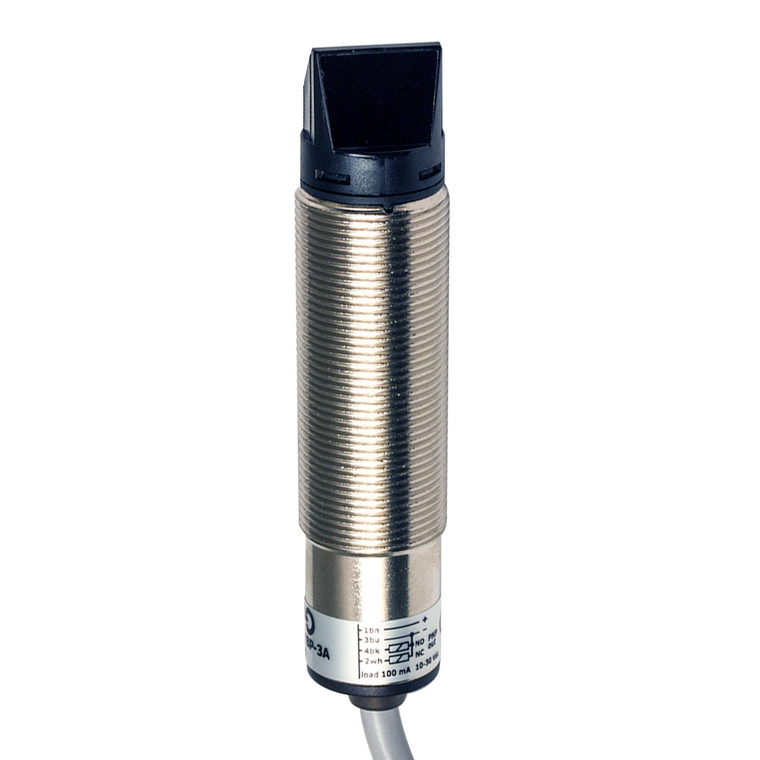

Datasensing FAIC/BP-3A Sensors
Datasensing
$89.55
The Datasensing FAIC/BP-3A Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° retroreflective function, these sensors are capable of detecting objects up to 4 meters away with a PNP NO+NC output configuration. Constructed with a robust metal housing and a 2-meter axial cable, they are built to withstand harsh environments, boasting an IP67 protection rating. The sensors operate on a 10...30 VDC power supply and are equipped with a radial optic position for enhanced performance. They are designed to handle a wide range of applications with a high switching frequency of 250Hz and a rapid response time of 2ms. The sensors include comprehensive protection features such as short-circuit, overvoltage, and reverse polarity protection, ensuring reliable operation. With CE and cULus approvals, these sensors meet stringent safety and performance standards. Ideal for detecting transparent objects, they offer a red emission and are compatible with the RL110 reflector. The sensors are engineered to resist external light interference and operate efficiently in temperatures ranging from -25°C to +70°C.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
