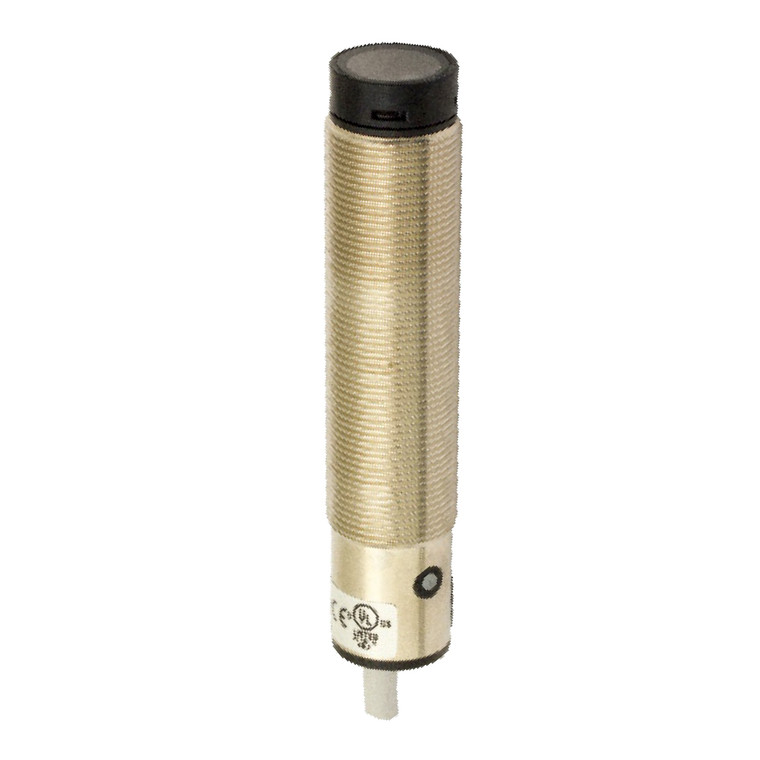

Datasensing FALD/BP-1A Sensors

The Datasensing FALD/BP-1A Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, and models with visible red laser emission. Built to withstand harsh environments, they boast an IP67 protection degree and are available in either metallic or plastic housing. Each model includes sensitivity adjustment capabilities, ensuring precise operation. The sensors are fully protected against any type of electrical damage and are CE and cULus listed for quality assurance. Key specifications include a nominal sensing distance of 50m, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The sensitivity adjustment is facilitated by a trimmer, and the function principle is based on a receiver. The sensors feature a PNP NO+NC output type with a switching frequency of 1Khz and a response time of 500µs. They operate efficiently within a voltage range of 10…30VDC, with a no-load supply current of ? 25mA and a load current of ?100mA. The output voltage drop is minimal at ?2V@Iload=100mA, and they can handle a maximum ripple content of ?10%. Additional features include LED indicators for output status, short-circuit protection with autoreset, overvoltage protection, and reverse polarity protection. The sensors are resistant to external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. With dimensions of M18 x 1/L=68.5mm and a weight of 130g, they are constructed with a nickel-plated brass housing and a glass/PC active head material. The sensors come with a 2m PVC cable for easy connections and are supplied with M18 x 1 nuts and a screwdriver for installation. They are designed to operate in temperatures ranging from -15°C to +55°C without freezing, and they meet EMC compatibility standards EN 60947-5-2, as well as vibration and shock standards IEC 60068-2-6 and IEC 60068-2-27.
