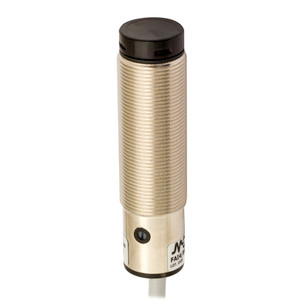

The Datasensing FALN/BP-1AAN Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an axial polarized LASER with a nominal sensing distance of 20 meters, these sensors are equipped with a PNP NO+NC output type, ensuring versatile functionality. The sensors boast a robust construction with a nickel-plated brass housing and a 2-meter PVC cable, providing durability and ease of installation. With a high switching frequency of 800Hz and a rapid response time of 625µs, they are ideal for fast-paced industrial environments.
These sensors are engineered to withstand challenging conditions, offering IP67 mechanical protection and operating effectively within a temperature range of -15°C to +55°C. They are equipped with short-circuit and overvoltage protection, as well as reverse polarity protection, ensuring safe and reliable operation. The sensors are compatible with various reflectors, achieving different sensing distances, and feature a teach-in sensitivity adjustment for precise calibration.
The FALN/BP-1AAN Sensors are certified with CE and cULus approvals, meeting stringent safety and performance standards. They are designed to resist interference from external light sources, withstanding up to 3000 lux from incandescent lamps and 10000 lux from sunlight. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate deployment in a wide range of applications.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=66 mm
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
