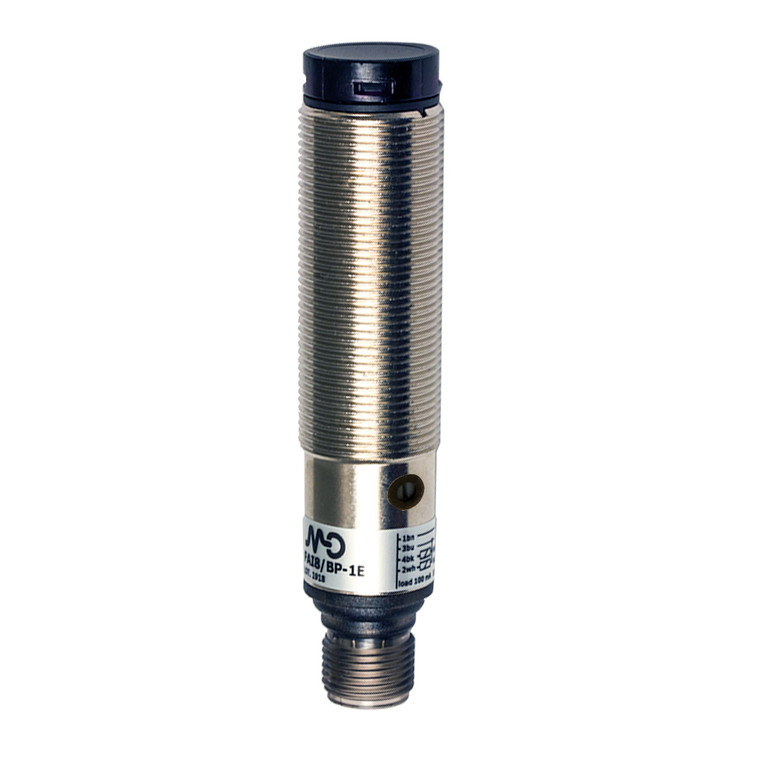

Datasensing FAR3/BN-1E Sensors
Datasensing
$85.16
The Datasensing FAR3/BN-1E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The robust M18 sensors operate on a 10...30 VDC power supply and are equipped with a trimmer for sensitivity adjustment, ensuring optimal performance in various environments.
Constructed with a durable nickel-plated brass housing and a PC plug, the FAR3/BN-1E sensors are built to withstand harsh conditions, boasting an IP67 protection degree. They are resistant to electric damages, thanks to comprehensive short-circuit, overvoltage, and reverse polarity protection. The sensors are also CE and cULus listed, ensuring compliance with international safety standards.
With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors are perfect for applications requiring quick and accurate detection. The output type is NPN NO+NC, providing versatile connectivity options. The sensors are equipped with LED indicators for easy status monitoring and can handle a load current of up to 100mA.
Designed to operate in temperatures ranging from -25°C to +70°C, the FAR3/BN-1E sensors are suitable for a wide range of industrial applications. They come with supplied accessories, including M18 x 1 nuts and a screwdriver, for easy installation. Whether detecting transparent objects with retro-reflective models or ensuring total protection against electric damages, these sensors deliver exceptional performance and reliability.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
