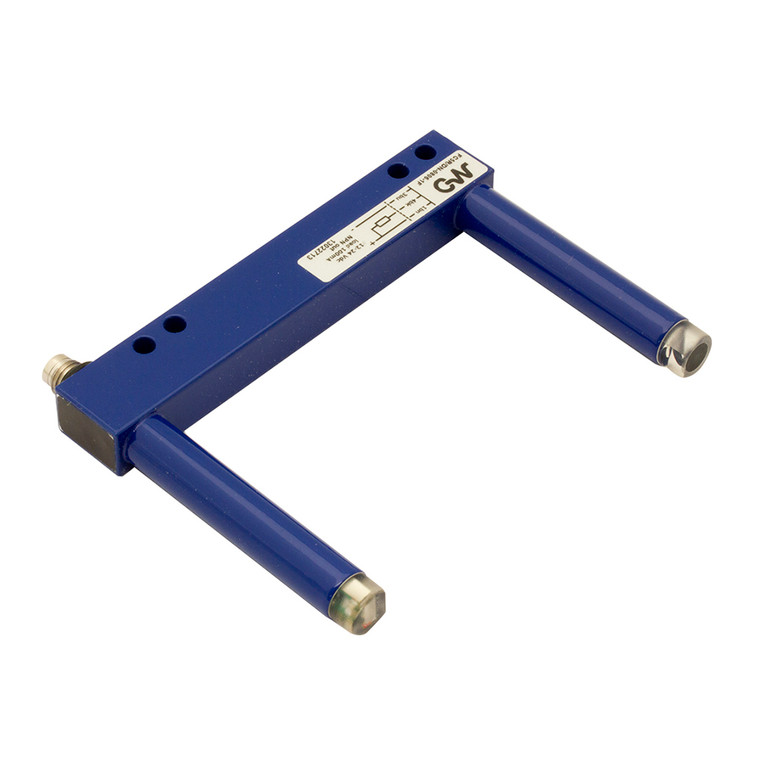

Datasensing FC5R/DP-0806-1F Sensors
Datasensing
$190.70
The Datasensing FC5R/DP-0806-1F Sensors are designed for precision and reliability in industrial applications. Featuring a slot width of 80mm and a depth of 60mm, these sensors utilize a high-power RED LED for optimal performance. With a PNP-NO output and an M8 connector, they offer plug-and-play functionality without the need for adjustments. The sensors are capable of detecting objects as small as 0.8mm, making them ideal for detailed detection tasks. Housed in durable painted aluminum, they are built to withstand harsh environments with an IP67 protection rating. The sensors operate efficiently within a temperature range of -10°C to +60°C and are equipped with short-circuit and reverse polarity protection. With a switching frequency of 4kHz and a response time of 125µs, they ensure fast and accurate detection. The LED indicators provide high visibility status output, and the sensors are compatible with a wide range of operating voltages from 12 to 24VDC. Approved by CE and UL, these sensors meet EMC compatibility standards EN 60947-5-2, ensuring reliable performance in various industrial settings.
- Nominal sensing distance:
- 80mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 86g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 80mm
- Depth slot detection:
- 60mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
