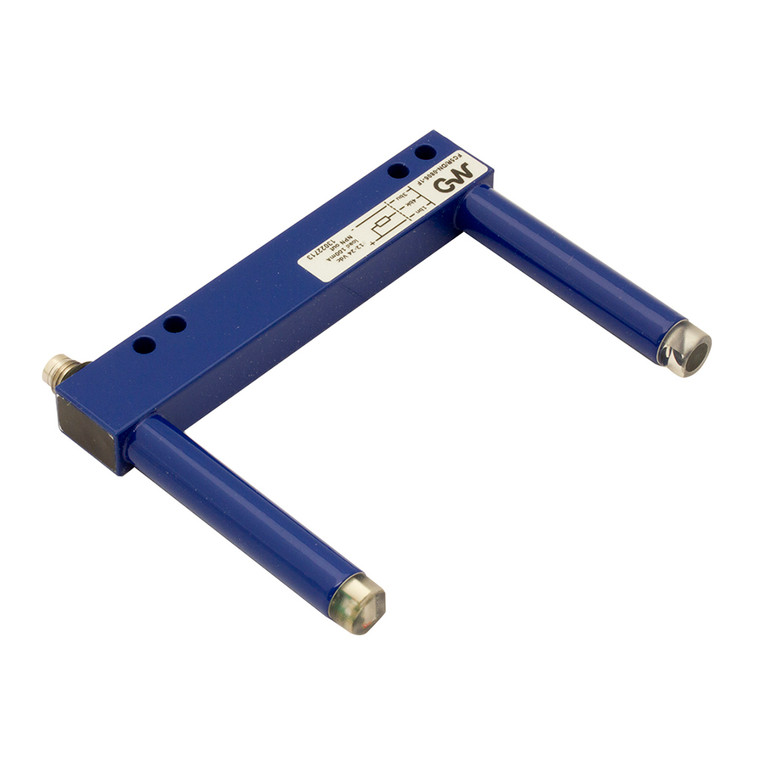

Datasensing FC5R/LP-0806-1F Sensors
Datasensing
$190.70
The Datasensing FC5R/LP-0806-1F Sensors are designed for precision and reliability, featuring an 80mm width slot and a 60mm depth, ideal for detecting objects as small as 0.8mm. Equipped with a high-power RED LED emission, these sensors ensure high visibility and efficient performance. The robust metal housing and compact design make it suitable for various industrial applications. With a PNP-NC output type and a switching frequency of 4 KHz, it offers quick response times of 125µs. The sensor operates within a voltage range of 12 to 24VDC and supports a load current of up to 100mA, with a minimal output voltage drop of ?1.5V at full load. It features a yellow LED indicator for status output and is protected against short-circuits and reverse polarity. The sensor is designed to withstand external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. Its durable construction includes a painted aluminium housing and a polyamide/glass active head, ensuring a long lifespan even in challenging environments. The sensor is easy to install with an M8 plug 3-pin connection and requires no sensitivity adjustment, making it a plug-and-play solution. It is CE and UL approved, EMC compatible with EN 60947-5-2 standards, and offers IP67 mechanical protection, ensuring reliable operation in temperatures ranging from -10°C to +60°C.
- Nominal sensing distance:
- 80mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 86g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 80mm
- Depth slot detection:
- 60mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
