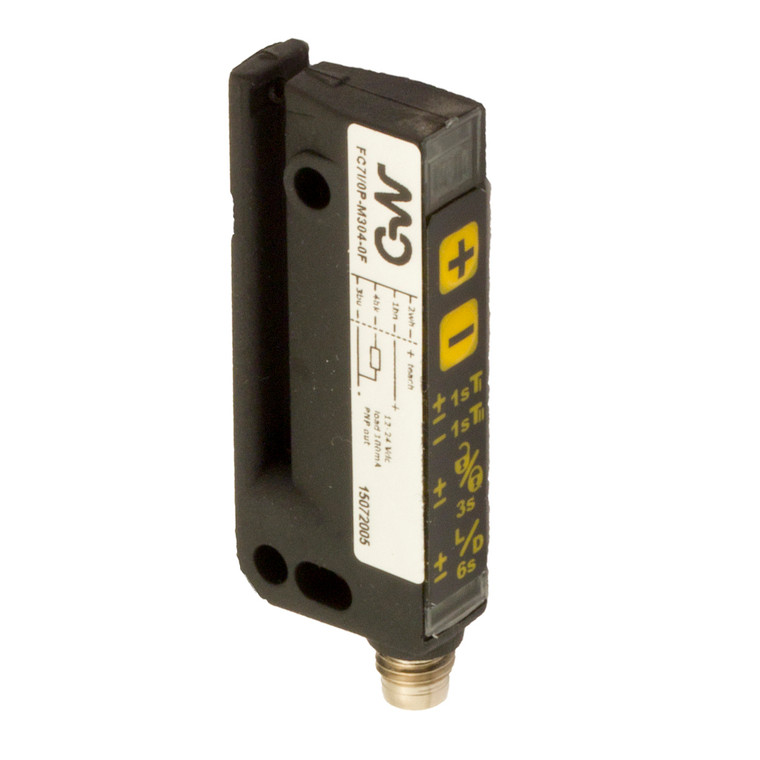

Datasensing FC7I/0B-M304-0F Sensors
Datasensing
$172.98
The Datasensing FC7I/0B-M304-0F Sensors are designed for precise label detection with a 3mm width slot and 42mm depth, utilizing infrared LED emission. These sensors offer dynamic Teach-in or manual adjustment via control panel with +/- buttons, ensuring optimal sensitivity. Capable of detecting minimum objects as small as 2mm, they feature a light/dark switching option selectable by button, and a high switching frequency of 10 kHz. The sensors are equipped with M8 connectors (4 pins) supporting both PNP and NPN output types, with a selectable light/dark output function. Operating within a temperature range of -20 to +60 °C, they are built with a robust PA housing, providing IP65 mechanical protection. The sensors are CE and UL approved, ensuring compliance with EMC compatibility standards EN 60947-5-2. With a nominal sensing distance of 3mm and a response time of 50 µs, these sensors are ideal for high-speed applications, maintaining accuracy with a sensitivity adjustment of +/-50 µm at 150m/min. The sensors operate on a voltage range of 12 to 24VDC, with a no-load supply current of ? 35mA and a load current of ?100mA, ensuring efficient performance. LED indicators provide clear status output and adjustment feedback, while reverse polarity protection enhances reliability.
- Nominal sensing distance:
- 3mm
- minimum detectable object:
- 2mm
- Sensitivity adjustment:
- Teach-in
- +/-50 µm a 150m/min:
- +/-50 µm at 150m/min
- 200 m/min:
- 200 m/min
- 2mm:
- 2mm
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10Khz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared
- Weight:
- 35g
- Housing Material:
- PA
- Connections:
- M8 plug 4pin
- Operating temperature:
- - 20°C + 60°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 3mm
- Depth slot detection:
- 42mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
