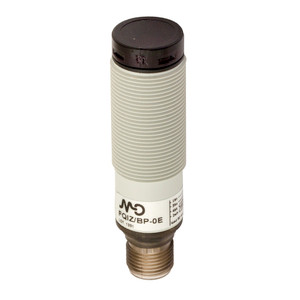

Datasensing FQI8/BN-0A Sensors
Datasensing
$111.31
The Datasensing FQI8/BN-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection function with a long sensing distance of up to 1000 mm, these sensors are ideal for various applications. The robust design includes a plastic housing with IP67 protection, ensuring durability and resistance to electrical damages. The sensors offer both NO and NC complementary outputs, with a nominal sensing distance of 1.2m and a repeat accuracy of 5%. They are equipped with a trimmer for sensitivity adjustment and operate efficiently within a voltage range of 10 to 30VDC. The sensors are protected against short circuits, overvoltage, and reverse polarity, making them highly reliable in challenging environments. With a fast response time of 2ms and a switching frequency of 250Hz, they ensure quick and accurate performance. The sensors come with a 2m PVC cable for easy installation and are approved with CE certification, meeting EMC compatibility standards. Ideal for use in environments with high interference from external light, they can withstand up to 5000lux from incandescent lamps and 10000lux from sunlight. The package includes M18 x 1 nuts and a screwdriver for convenient setup.
- Nominal sensing distance:
- 1,2m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?50mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
