Datasensing MS0/00-1A Sensors
Datasensing
$164.12
The Datasensing MS0/00-1A Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 50mm and utilize background suppression technology to ensure accurate detection. With a robust design, they offer complete protection against electrical damage and are equipped with short-circuit and overvoltage protection. The sensors operate within a voltage range of 10 to 30VDC and have a high switching frequency of 1kHz, ensuring quick response times of just 500µs.
Constructed with a durable nickel-plated brass housing and a PMMA active head, these sensors are built to withstand harsh environments, boasting an IP67 degree of protection. They are resistant to shocks and vibrations, complying with IEC standards, and can operate in temperatures ranging from -25°C to +70°C. The sensors come with a 2m PVC cable for easy installation and feature selectable NPN/PNP output types with NO/NC functionality.
The MS0/00-1A Sensors are equipped with LED indicators for status output and are designed to handle a load current of up to 100mA with minimal leakage. They are also protected against impulsive overvoltage and interference from external light sources, making them ideal for use in challenging lighting conditions. With a compact M18 x 1 design and a weight of 130g, these sensors are easy to integrate into existing systems, providing reliable performance and enhanced operational efficiency.
- Nominal sensing distance:
- 50mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial

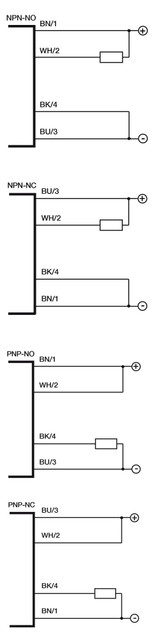

- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
