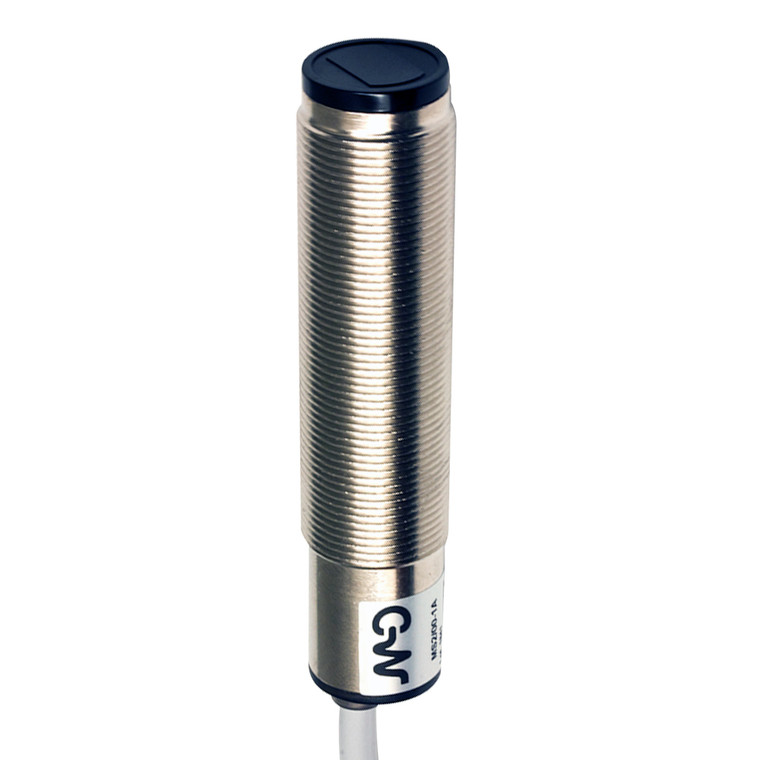

Datasensing MS4/00-1A Sensors
Datasensing
$123.89
The Datasensing MS4/00-1A Sensors are designed for precision and reliability in various industrial applications. This photoelectric sensor features a diffuse reflection function with a nominal sensing distance of 200mm, ideal for short-distance detection tasks. The sensor is equipped with a robust nickel-plated brass housing and a 2m PVC cable for easy installation and durability. It operates efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 40mA and a load current of ?100mA.
The MS4/00-1A offers selectable NPN/PNP output types and NO/NC output functions, providing flexibility for different operational needs. With a high switching frequency of 80Hz and a quick response time of 6.25ms, it ensures fast and accurate detection. The sensor is protected against electrical damage with features like short-circuit protection, overvoltage protection, and impulsive overvoltage protection.
Designed to withstand harsh environments, it has an IP67 degree of protection and is resistant to shocks and vibrations as per IEC standards. The sensor's LED indicators provide clear status output, and it can handle interference from external light sources up to 3000lux (incandescent lamp) and 10000lux (sunlight).
With a compact design of M18 x 1 dimensions and a weight of 130g, the MS4/00-1A is easy to integrate into existing systems. It operates reliably in temperatures ranging from -25°C to +70°C, making it suitable for a wide range of industrial settings. The sensor comes with supplied accessories, including M18 x 1 nuts, ensuring a secure and straightforward installation process.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
