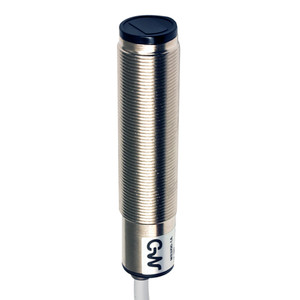

Datasensing MS4/00-1H Sensors

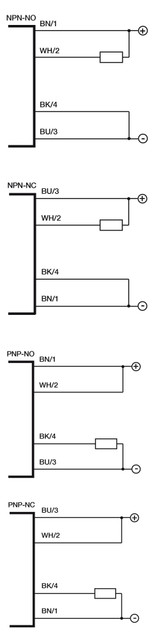

The Datasensing MS4/00-1H Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a diffuse reflection principle, these sensors offer a nominal sensing distance of 200mm, ideal for short-distance applications. Constructed with a robust nickel-plated brass housing and a PMMA active head, they ensure durability and reliability in various environments. The sensors are equipped with an M12 metal connector for secure and easy installation. With a repeat accuracy of 5% and a thermal drift of Sr ?10%, these sensors maintain consistent performance. They operate on a voltage range of 10…30VDC, with a no-load supply current of ? 40mA and a load current of ?100mA. The output type is selectable between NPN/PNP and NO/NC, providing flexibility for different system requirements. The sensors feature a high switching frequency of 80Hz and a quick response time of 6.25ms, making them suitable for fast-paced applications. The MS4/00-1H Sensors are equipped with red LED indicators for status output, and they offer short-circuit and overvoltage protection, ensuring safe operation. They are designed to withstand external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight. The sensors are compliant with CE and cURus approvals and meet EMC compatibility standards EN 60947-5-2. They are also resistant to shocks and vibrations as per IEC standards, with an IP67 mechanical protection rating, making them suitable for harsh industrial environments. Supplied with M18 x 1 nuts, these sensors are ready for immediate integration into your system.
