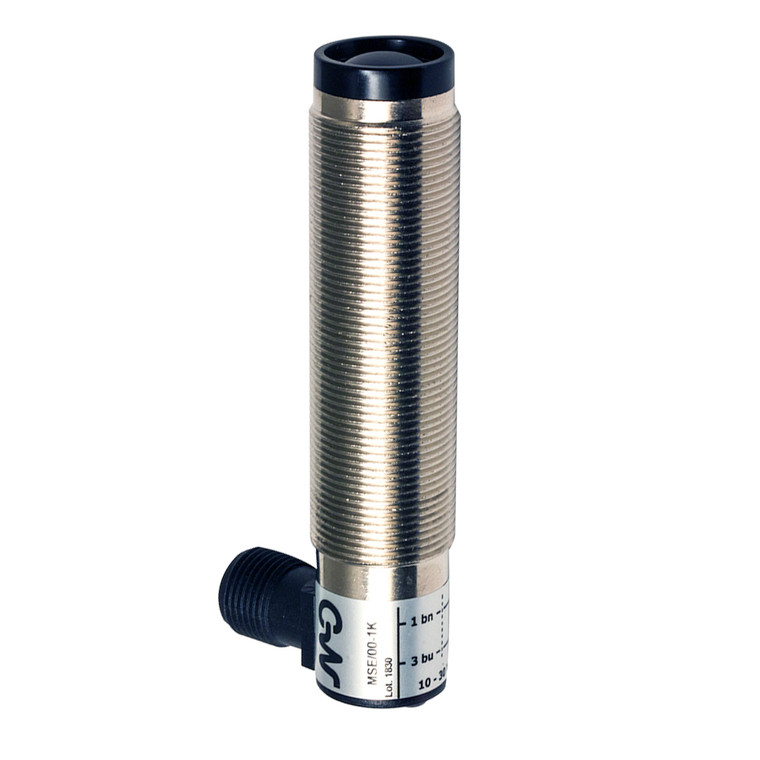

Datasensing MSE/00-1K Sensors
Datasensing
$114.85
The Datasensing MSE/00-1K Sensors offer a versatile range of models designed to meet diverse detection needs, including diffuse, retro-reflective, polarized, through-beam detection, and background suppression. These sensors are engineered for high performance, with through-beam models boasting an impressive sensing range of up to 32 meters. Retro-reflective models feature red visible polarized light for enhanced accuracy, while background suppression models maintain fixed distance detection.
All through-beam models come equipped with a check function, ensuring reliable operation and complete protection against electrical damage. The sensors operate within a voltage range of 10 to 30VDC, with a no-load supply current of ? 15mA, and are safeguarded by short-circuit and overvoltage protection.
Constructed with a robust nickel-plated brass housing and PMMA active head material, these sensors are built to withstand harsh environments, offering an IP67 degree of protection. They are designed to endure temperatures ranging from -25°C to +70°C without freezing, and are resistant to shocks and vibrations as per IEC standards.
The MSE/00-1K Sensors are equipped with LED indicators for power status, and feature an M12 plug connection for easy installation. With a compact M18 x 1 dimension and a weight of 100g, these sensors are both durable and efficient, making them an ideal choice for a wide range of industrial applications.
- Nominal sensing distance:
- 16m (MSR), 32m (MSD)
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 15mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 100g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
