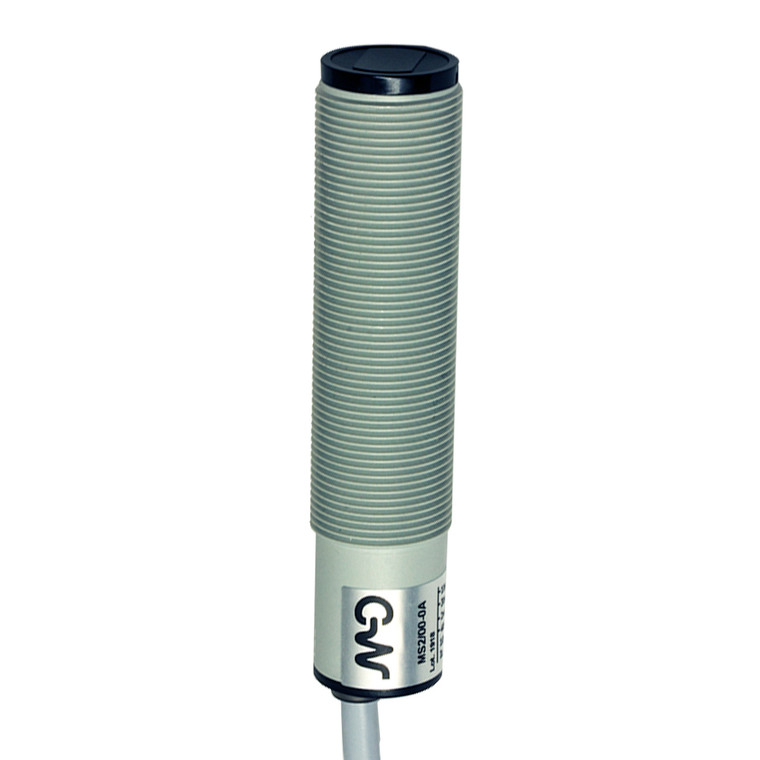

Datasensing MSR/00-0A Sensors
Datasensing
$96.17
The Datasensing MSR/00-0A Sensors are designed for precision and reliability in various industrial applications. This photoelectric sensor features an M18 receiver with a nominal sensing distance of 16 meters, ensuring accurate detection over long ranges. The sensor offers a versatile output type with NPN/PNP selectable NO/NC options, allowing for flexible integration into different systems. With a robust design, it includes complete protection against electrical damage, including short-circuit and overvoltage protection, ensuring durability and longevity.
The MSR/00-0A model is equipped with a 2-meter axial plastic cable and operates efficiently within a voltage range of 10 to 30VDC. It boasts a high switching frequency of 30Hz and a quick response time of 16.66ms, making it ideal for fast-paced environments. The sensor's housing is made from durable PBT/PC material, and it is rated IP67 for excellent resistance to dust and water ingress.
Additional features include a red LED indicator for status output, a thermal drift of ?10% Sr, and a repeat accuracy of 5%. The sensor is designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and compliance with EMC standards EN 60947-5-2. It also includes supplied accessories such as M18 x 1 nuts for easy installation. Whether for diffuse, retro-reflective, polarized, through-beam detection, or background suppression, the Datasensing MSR/00-0A Sensors provide reliable performance and adaptability for your sensing needs.
- Nominal sensing distance:
- 16m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 30Hz
- Response time:
- 16,66ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
