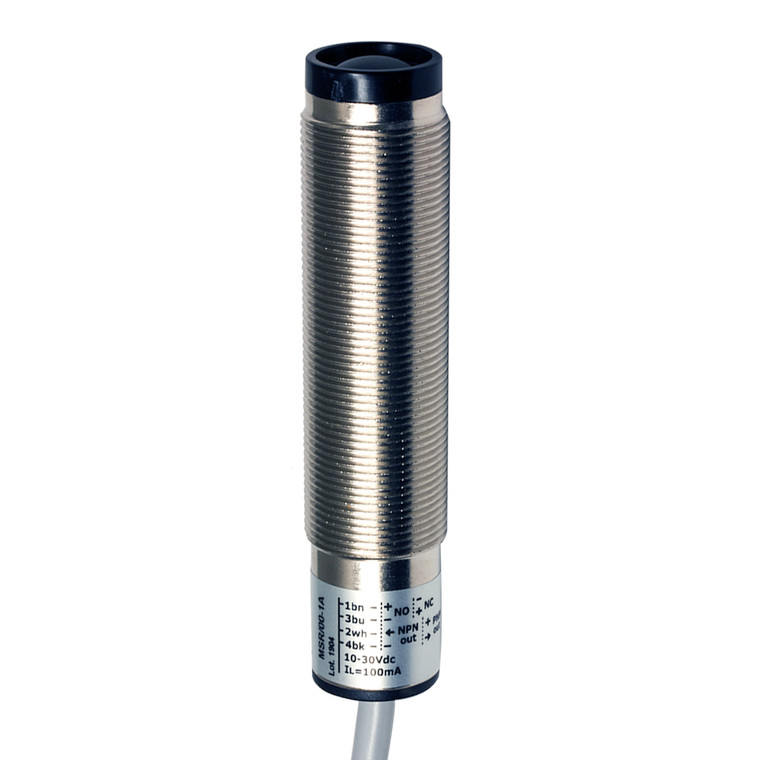

The Datasensing MSR/00-1A86 Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. With a nominal sensing distance of 16 meters, these sensors are ideal for various industrial applications. The robust nickel-plated brass housing ensures durability, while the 5-meter PVC cable provides flexibility in installation. The sensor features an M18 diameter with an axial optic position, making it suitable for tight spaces.
Equipped with selectable NPN/PNP and NO/NC output types, the MSR/00-1A86 offers versatile integration options. It operates efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 25mA and a load current capacity of ?100mA. The sensor's response time is a swift 16.66ms, and it can handle a switching frequency of up to 30Hz.
Designed to withstand harsh environments, the sensor is IP67 rated for mechanical protection and can operate in temperatures ranging from -25°C to +70°C. It also features short-circuit and overvoltage protection, ensuring reliable performance even in challenging conditions. The red LED indicator provides clear status output, and the sensor is resistant to external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight.
The MSR/00-1A86 is CE and cURus approved, with EMC compatibility according to EN 60947-5-2 standards. It includes supplied accessories such as M18 x 1 nuts for easy mounting. With a repeat accuracy of 5% and a thermal drift of Sr ?10%, this sensor is a dependable choice for precise detection tasks.
- Nominal sensing distance:
- 16m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable Decout NO/NC Selectable
- Output Function:
- Decout NO/NC Selectable
- Switching frequency:
- 30Hz
- Response time:
- 16,66ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 5m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1 /L =78,9mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
