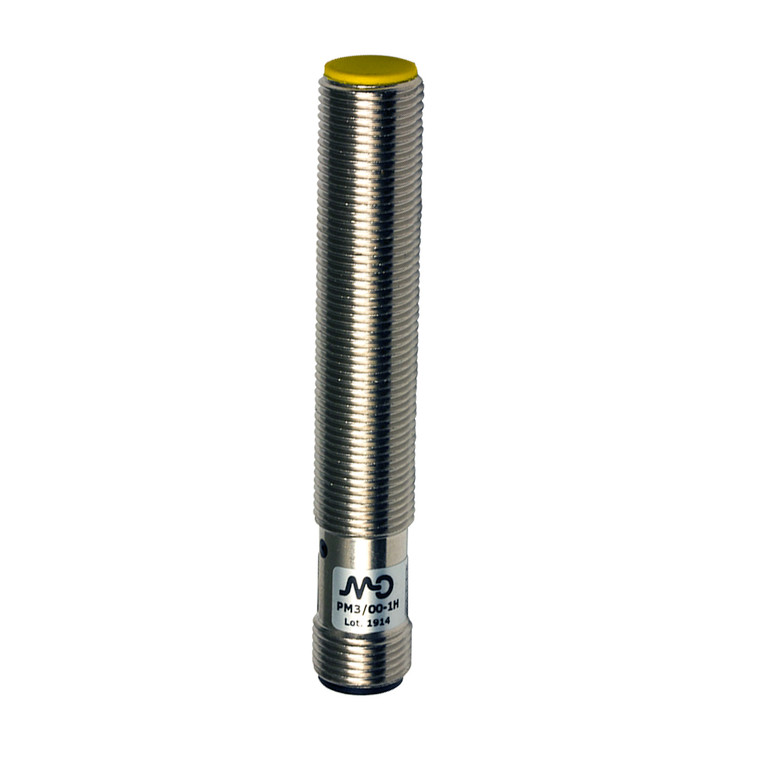

Datasensing PM3/00-1H Sensors
Datasensing
$80.06
The Datasensing PM3/00-1H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a nominal sensing distance of 2mm and an operating range of 0 to 1.62mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and a compact M12 x 1 design, they ensure durability and ease of installation. The sensors offer versatile output options with NPN/PNP and NO/NC functions, and a switching frequency of 1kHz, making them suitable for various industrial applications. They are equipped with advanced protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable operation in challenging environments. The yellow LED indicator provides clear output state visibility, while the IP67 rating guarantees resistance to dust and water ingress. Operating efficiently within a temperature range of -25°C to +70°C, these sensors are CE approved and comply with IEC 60947-5-2 standards for EMC compatibility. Supplied with two M12x1 nuts, the Datasensing PM3/00-1H Sensors are a dependable choice for proximity sensing needs.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,30 / aluminium: 0,35 / brass: 0,50 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO/NC
- Switching frequency:
- 1kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 30mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 29g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
