Datasensing PM3/00-2H Sensors
Datasensing
$80.06

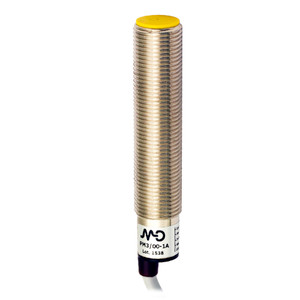

The Datasensing PM3/00-2H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M12 unshielded connection, these sensors offer versatile NPN/PNP output with NO/NC switching functions. With a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, they are ideal for detecting standard targets of 12x12mm FE360. The sensors boast a robust nickel-plated brass housing and an active head made of PBT, ensuring durability in demanding environments.
These sensors are equipped with a wide range of features, including short-circuit, reverse polarity, and impulsive overvoltage protection, making them suitable for various industrial applications. The yellow LED indicator provides a clear output state, while the M12 plug connection ensures easy installation. With a switching frequency of 1kHz and an operating voltage range of 10 to 30Vdc, these sensors deliver fast and efficient performance.
The PM3/00-2H Sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP67. They are also compliant with CE and EMC standards, ensuring reliable operation in environments subject to shocks and vibrations. Supplied with two M12x1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,52 / aluminium: 0,57 / brass: 0,62 / stainless steel: 0,87
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity

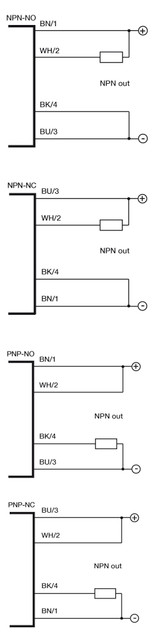

- Output type:
- NPN/PNP
- Output Function:
- NO/NC
- Switching frequency:
- 1kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 30mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 29g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
