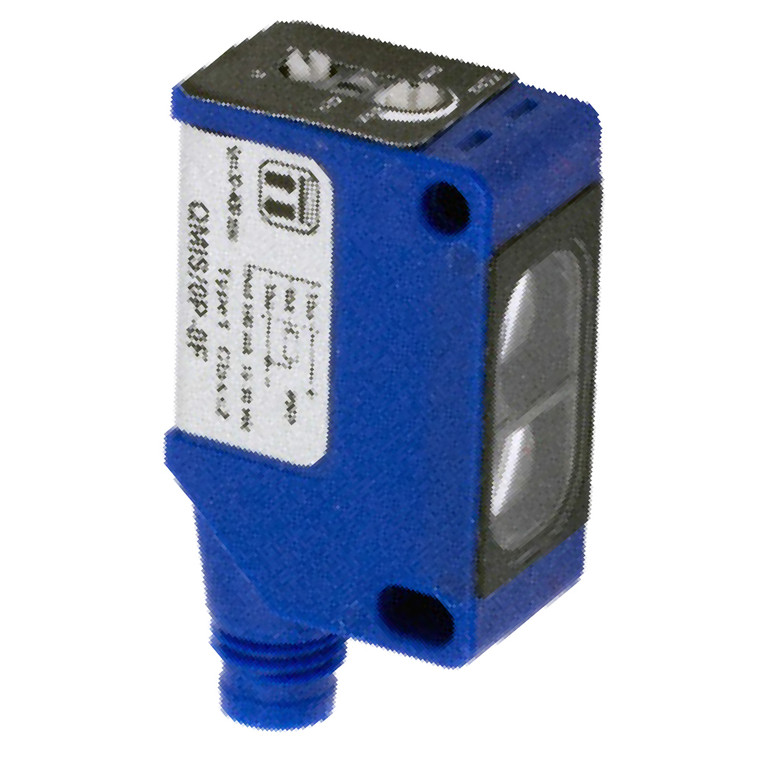

Datasensing QMI7/0N-0F Sensors
Datasensing
$123.96
The Datasensing QMI7/0N-0F Sensors are compact, high-performance photoelectric sensors designed for precision and reliability. With a cubic miniature design, these sensors offer a long sensing distance of up to 400mm, making them ideal for various industrial applications. They feature a 2 kHz switching frequency and background suppression with mechanical adjustment, ensuring accurate detection even in challenging environments.
These sensors are available in a wide range of models, including diffuse reflection with short, medium, and long sensing distances, polarized, reflective for transparent objects, through-beam, and background suppression. They come with either a cable and M8 plug exit or an M8-M12 pig-tail, providing flexibility in installation.
The QMI7/0N-0F Sensors are equipped with selectable LO/DO output states and are completely filled with resin, except for background suppression models, offering complete protection against electrical damages. They have a nominal sensing distance of 400mm, with a thermal drift of Sr ?10% Sr and a repeat accuracy of 5%. Sensitivity can be adjusted using a trimmer, and the sensors operate on a diffuse reflection principle for medium distances up to 600mm.
These sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and a storage temperature range of -30°C to +80°C. They are housed in durable PA66 material with an active head made of PMMA, ensuring longevity and reliability. The sensors are CE cULus approved and EMC compatible with EN 60947-5-2 standards, offering IP67 mechanical protection against dust and water ingress.
With features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, the Datasensing QMI7/0N-0F Sensors are engineered for safety and efficiency. They are equipped with LED indicators for status output and stability, and can handle interference from external light sources up to 3000lux (incandescent lamp) and 10000lux (sunlight). These sensors are an excellent choice for applications requiring precise and reliable photoelectric sensing.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 2kHz
- Response time:
- 250µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), green (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (850nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 10g
- Housing Material:
- PA66
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Storage temperature:
- - 30°C + 80° C (Without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
