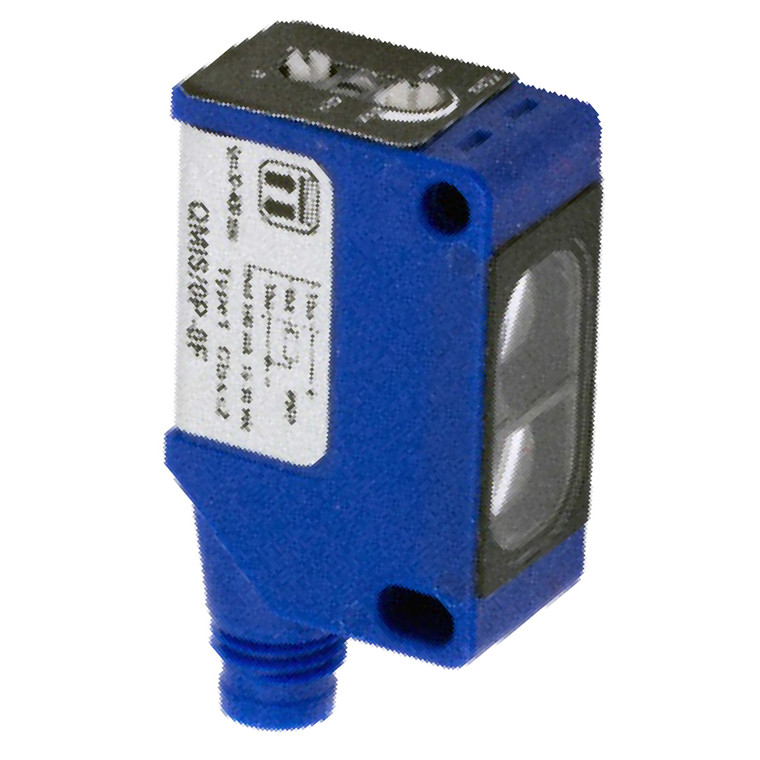

Datasensing QMRN/0N-0F Sensors

The Datasensing QMRN/0N-0F Sensors are compact, high-performance photoelectric sensors designed for precision and reliability. Featuring a nominal sensing distance of 5 meters, these sensors utilize a polarized function principle with a radial 90° optic position, ensuring accurate detection even in challenging environments. The NPN output type is light/dark selectable, providing flexibility in various applications. With a switching frequency of 2kHz and a rapid response time of 250µs, these sensors are ideal for high-speed operations. Engineered with robust PA66 housing and PMMA active head material, the sensors offer excellent durability and are rated IP67 for mechanical protection, making them suitable for harsh industrial conditions. The sensors are equipped with LED indicators for status output and stability, ensuring easy monitoring and maintenance. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA, ensuring energy efficiency. Additional features include short-circuit and reverse polarity protection, impulsive overvoltage protection, and EMC compatibility with EN 60947-5-2 standards. The sensors are designed to withstand shocks and vibrations as per IEC standards, with a storage temperature range of -30°C to +80°C and an operating temperature range of -25°C to +70°C. The compact cubic design, with dimensions of 40.6x21x13mm, and M8 plug 4-pin connections, make installation straightforward and secure. Approved by CE and cULus, these sensors are a reliable choice for various industrial applications.
