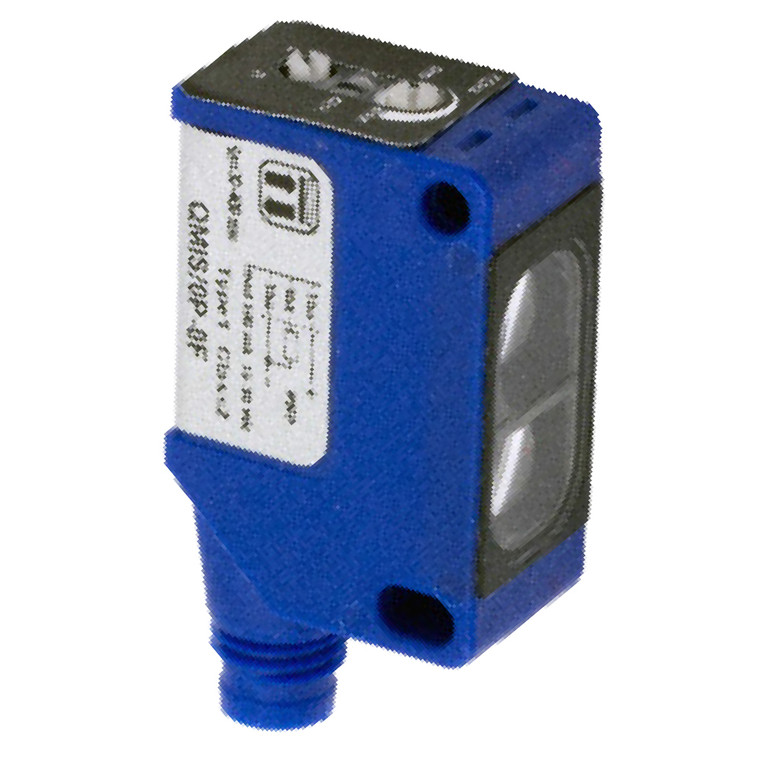

Datasensing QMRN/0P-0F Sensors
Datasensing
$138.00
The Datasensing QMRN/0P-0F Sensors are compact, high-performance photoelectric sensors designed for precision and reliability. Featuring a nominal sensing distance of 5 meters, these sensors utilize a polarized function principle with a radial 90° optic position, ensuring accurate detection on RL110 reflectors. The sensors offer a PNP output type with L/D selectable output function, and a switching frequency of 2kHz, providing rapid response times of just 250µs.
Engineered for durability, the sensors are housed in robust PA66 material with an active head made of PMMA, offering mechanical protection rated at IP67. They are equipped with LED indicators for status output and stability, and are protected against short-circuits, reverse polarity, and impulsive overvoltage. The sensors operate efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA.
Designed to withstand harsh environments, they maintain functionality in temperatures ranging from -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards. With a compact cubic design measuring 40.6x21x13mm, these sensors are easy to integrate into various applications, ensuring reliable performance even in challenging conditions.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 2kHz
- Response time:
- 250µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), green (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (630nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- PA66
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Storage temperature:
- - 30°C + 80° C (Without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- 40,6x21x13mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
