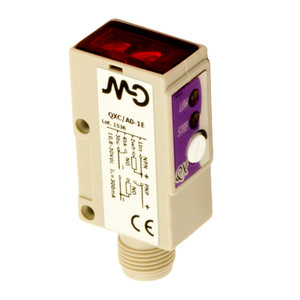

Datasensing QXR/A0-2A Sensors

The Datasensing QXR/A0-2A Sensors are advanced photoelectric sensor receivers designed for precision and reliability. Featuring a 90° radial optic position and a 2-meter optic cable, these sensors are equipped with axial and right-angle optics for versatile application. The sensors boast a nominal sensing distance of 8 meters and a repeat accuracy of ? 5%, ensuring high performance in various environments. With visible red light in retro-reflective, polarized, and through-beam models, these sensors offer long-distance capability and a precision beam for accurate detection. The fast response time of 0.75-0.5 ms and a switching frequency of 500Hz make them ideal for high-speed operations. The NPN-PNP selectable output and high output current of over 300 mA provide flexibility and power for diverse applications. The sensors are equipped with two LED indicators: a red LED for output status and a green LED for stability, allowing for easy monitoring. They operate on a voltage range of 10…30VDC with a no-load supply current of ? 5mA, ensuring energy efficiency. The sensors are protected against short-circuits and reverse polarity, with a leakage current of ? 100?A @ 30Vdc and an output voltage drop of ?1.2V@Iload=100mA. Constructed with a durable ABS housing and an acrylic active head, the sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP65. They are EMC compatible with EN 60947-5-2 standards and come with ST70 mounting brackets and screws for easy installation. The compact cubic design, measuring 15x23x40 mm and weighing 70g, makes them suitable for space-constrained applications.
