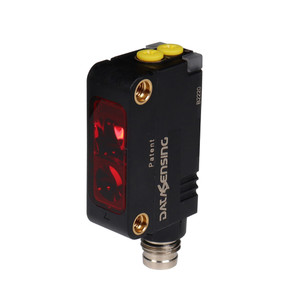

Datasensing Red LED emission Background Suppressor single trimmer Light Output PNP Connector M8 4P

The Datasensing Red LED Emission Background Suppressor is a highly efficient sensor designed for precise object detection and background suppression. Featuring a single trimmer for light output adjustment, this sensor offers a nominal sensing distance of 800mm with a minimum blind zone of 0mm, making it ideal for applications requiring high accuracy. The sensor operates on a PNP output type with a switching frequency of 500Hz and a rapid response time of 1ms, ensuring quick and reliable performance. Equipped with state-of-the-art IO-Link connectivity, this sensor supports extended Smart Tasks, enhancing its versatility in various industrial settings. The rugged IP67-rated plastic miniature case, reinforced with fiber glass, ensures durability and protection against harsh environments. The sensor's compact cubic design, with dimensions of 11x31x19 mm, allows for easy integration into tight spaces. The device features a visible and bright red LED emission at 635nm, with multiple background suppression functions for detecting shiny and clear objects. It offers a diffuse proximity range of up to 100 cm and background suppression up to 800 mm. The sensor is equipped with yellow OUTPUT and green POWER ON LED indicators for easy status monitoring. With a robust design that includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, this sensor is built to withstand challenging conditions. It operates within a voltage range of 10…30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The sensor's connections are facilitated by an M8 plug 4-pin connector, ensuring secure and reliable connectivity. Approved by CE and cULus, and compliant with EMC compatibility standards EN 60947-5-2, this sensor is engineered to deliver exceptional performance and reliability in demanding industrial applications.
