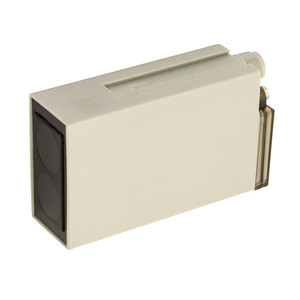

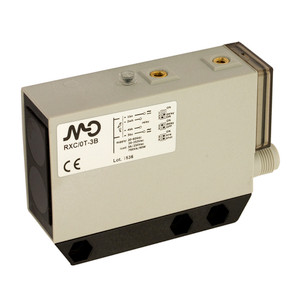

Datasensing RX6/00-3B Sensors
Datasensing
$146.27
The Datasensing RX6/00-3B Sensors are designed for high-performance photoelectric sensing with a diffuse reflection principle, ideal for long-distance detection over 600mm. These sensors offer a nominal sensing distance of 1 meter and feature a compact cubic design with dimensions of 26x86.6x61mm, making them suitable for a variety of installation environments. The sensors are equipped with a relay output type (SPST NO/NC) and a multifunctional DECOUT® system, providing flexibility in output functions.
With a robust operating voltage range of 20...60VDC / 20...253VAC/50-60Hz, these sensors ensure reliable performance across different power supplies. The RX6/00-3B model includes a trimmer for sensitivity adjustment, allowing precise control over detection capabilities. The sensors are protected against reverse polarity and impulsive overvoltage, ensuring durability and longevity in industrial settings.
The RX6/00-3B features LED indicators for easy alignment and status monitoring, with a red LED for output status and alignment, and a green LED for stability. The sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP65. The housing is made from durable PC material, while the active head is constructed from PMMA, ensuring resilience against environmental factors.
Supplied with an ST81 mounting bracket and screws, the RX6/00-3B sensors are easy to install and integrate into existing systems. They are CE approved and comply with EMC compatibility standards EN 60947-5-2, ensuring they meet rigorous safety and performance criteria. With a high switching frequency of 25Hz and a response time of 20ms, these sensors are ideal for applications requiring fast and accurate detection.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm EG=1,5
- Optic position:
- Axial
- Output type:
- Relay SPST NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...60VDC /20...253VAC/50-60Hz
- No-Load supply current:
- ? 25mARMS
- Load current:
- 3A-250Vac/3A-30Vdc (750VA/90W)
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 90g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST81 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
