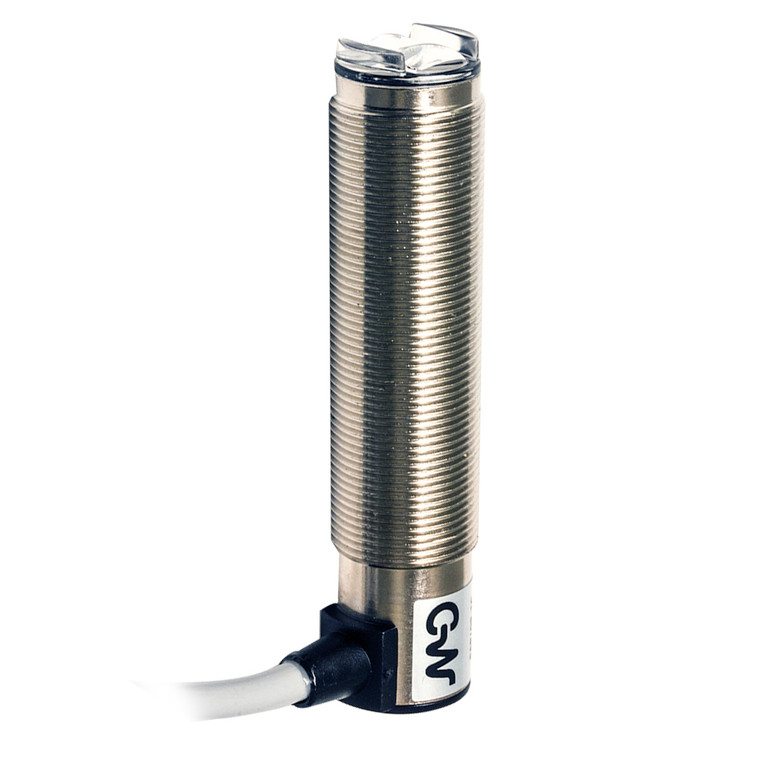

Datasensing SAP/0N-1C Sensors
Datasensing
$170.54
The Datasensing SAP/0N-1C Sensors are designed for precision and reliability, featuring a polarized photoelectric sensor with a nominal sensing distance of 3 meters. Equipped with a sensitivity adjustment trimmer, these sensors offer a wide range of models including diffuse, retro-reflective, polarized, and fixed-focus options. The double LED indicator provides clear status updates with green for power ON and yellow for status output. With a selectable NO/NC output and IP65 protection, these sensors ensure complete protection against electrical damage.
The SAP/0N-1C model boasts a robust construction with a nickel-plated brass housing and a nylon cable exit, ensuring durability in various environments. It operates efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensor's response time is a swift 500µs, and it can handle a switching frequency of 1kHz.
Designed to withstand harsh conditions, the sensor is protected against short-circuits and reverse polarity, and it maintains performance in temperatures ranging from -25°C to +70°C. The device is also resistant to external light interference, withstanding up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight.
The SAP/0N-1C comes with a 2-meter PVC cable with a 90° exit, and it includes M18 x 1 nuts for easy installation. With CE approvals and EMC compatibility per EN 60947-5-2 standards, this sensor is a reliable choice for various industrial applications.
- Nominal sensing distance:
- 3m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 140g
- Housing Material:
- Nickel-plated brass / Nylon cable exit
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
